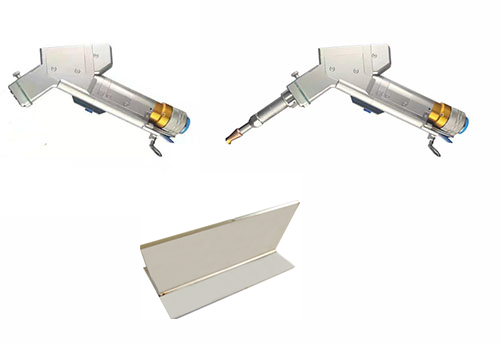

1500W Fiber Handheld Single Motor Three-in-One Machine

Handheld Single Motor Three-in-One Machine Description:

Handheld Single Motor Three-in-One Machine Features:

• Product Name: Fiber Laser Three-in-One Machine
• Laser Power: 1500W
• Handheld Laser Gun Weight: 0.7kg
• Standard Focus length: 60 & 150mm standard Focus length adjustable
• Welding Laser Beam Size: 0-5mm Adjustable
• Cleaning Laser Beam Size: 0-50mm Adjustable
• Laser Beam Form: Line “一”
• Laser Head Connection: QBH
• Welding Materials: Steel / Stainless Steel / Aluminum
• Welding Thickness: 4mm Stainless steel Full Penetration
• Machine Electric Consumption: 8Kw/h about
• Gas: Argon / Nitrogen

The Handheld Single Motor Three-in-One Machine: With 1500W laser power and around 8Kw/h consumption, it can weld steel, stainless steel and aluminum, reaching full penetration for 4mm stainless steel. The 0.7kg handheld laser gun has an adjustable standard focus length from 60 to 150mm and adjustable welding/cutting laser beam size (0 - 5mm for welding, 0 - 50mm for cleaning). The laser beam is in a line form. It adopts QBH connection and demands argon or nitrogen gas. Suited well for metal fabrication, machinery repair and surface treatment in workshops and factories.

Handheld Single Motor Three-in-One Machine Technical Parameters:

Product Name	Handheld Single Motor Three-in-One Machine
Laser Power	1500W
Adopt Laser Source	1064~1080nm Fiber laser source
Handheld Laser Gun Weight	0.7 KG
Welding Laser Beam Size	0-5mm Adjustable
Cleaning Laser Beam Size	0-50mm Adjustable
Cleaning Beam Form	Line " 一 "
Fiber Connector	QBH
Standard Focus length	60 & 150mm standard Focus length adjustable
Wire Feeding Device	Standard type : 0.8&1.0&1.2&1.6mm wire
Double Route Wire Feeder	Option (Same time double route feeding)
Welding Parameter Save	30 kinds of different welding parameter save

Handheld Single Motor Three-in-One Machine Application Advantages:

The HanWei HW - DZJS - 1500 Handheld Single Wobble Three-in-One Machine has notable application advantages. It's highly portable due to its compact and light design, suitable for tight spaces and mobile work, enhancing flexibility without complex equipment or many operators.

It integrates welding, cutting, and cleaning. In welding, with 1500W power, it welds steel, stainless steel, and aluminum, achieving 4mm stainless steel full penetration. The 0 - 5mm adjustable welding beam suits different tasks. For cutting, the laser beam cuts materials with adjustable speed and depth. In cleaning, the 0 - 50mm adjustable beam cleans various surfaces, useful in automotive, household, and industrial equipment cleaning.

It's energy-efficient and cost-effective. The single-motor saves energy, simplifies work, reduces time and energy use. Its simple structure cuts manufacturing and maintenance costs. It's user-friendly, needing no special training, accessible to all, and reducing errors and training expenses.

Handheld Single Motor Three-in-One Machine Packing:

• One Handheld Laser Gun
• One Controller
• One Touch Screen Monitor
• One Safety Switch Clip
• A set of Connection Cables and Line
• Two Protective Lens
• One Focus Lens for cleaning
• Seven kinds of nozzles
• One 15v Power Supply
• One Wire feeding device
• One User Manual
