3000W Fiber Handheld Single Motor Laser Welding Head

Handheld Single Motor Laser Welding Head Description:

Handheld Single Motor Laser Welding Head Features:

• Product Name: Fiber Laser Welding Head
• Handheld Laser Gun Weight: 0.7kg
• Laser Beam Size: 0~5mm Adjustable
• Fiber Connector: QBH
• Positioning: Red Guide Beam
• Feeding Wires: Standard type : 0.8&1.0&1.2&1.6mm wire ( Option : 2mm wire )

The Fibre Laser Welding Head is a high power Fibre Laser Gun equipped with a QBH fibre connector. Its laser beam size can be adjusted within 0 - 5mm, and there is a red guide beam for positioning. This Fiber Optic Laser Welding Nozzle is of light weight and user - friendly, with a total weight of 0.7kg.

Handheld Single Motor Laser Welding Head Technical Parameters:

Product Name	Handheld Single Motor Laser Welding Head
Laser Power	Up to 3000W
Adopt Laser Source	1064~1080nm Fiber laser source
Fiber Connector	QBH
Welding Beam Form	Line " 一 "
Position Guide	Red Guide Light
Welding Beam Size	0-5mm Adjustable
Standard Focus length	60 &150mm standard Focus length adjustable
Laser Output Mode	4 mode ( CW, PWM, QCW, Argon)
Handheld Laser Gun Weight	0.7kg
Fiber Cable	10m Standard. (15 / 20m Option)
Welding Parameter Save	30 kinds of different welding parameter save

Handheld Single Motor Laser Welding Head Application Advantages:

The HanWei HW - 20 - 60150 handheld welding head performs outstandingly in a multitude of situations. It is highly convenient for field welding due to its portability and versatility in application. The wireless welding capability renders it straightforward and productive, enabling you to swiftly finish welding tasks. This product is highly suitable for construction, manufacturing, and repair operations. It is indispensable for those in need of a reliable and efficient welding device.

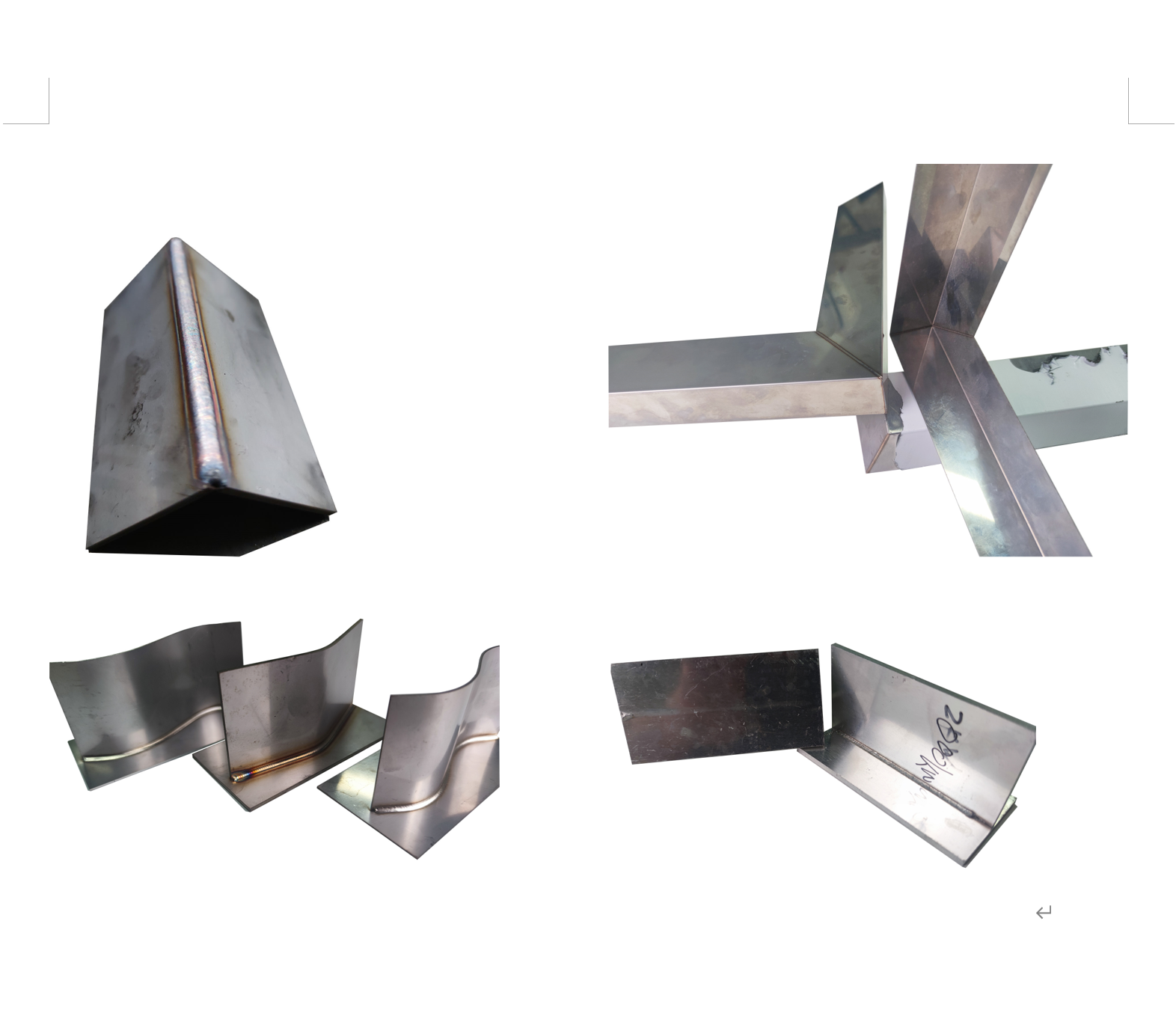

The handheld single wobble welding head serves as an excellent alternative to conventional argon arc welding and electric welding when working with thin metal sheets such as stainless steel, steel, and aluminum. The welding head is compact, lightweight, and ergonomically engineered for a pleasant handling experience. It features a safety lock accompanied by a touch-activated indicator light. It is user-friendly and imposes minimal requirements on the operator. The welding seam is of high quality, the welding speed is rapid, and there are no welding traces, no color alteration, and no necessity for subsequent grinding. It exhibits robust anti-interference capabilities and is furnished with a self-developed control system.

Handheld Single Motor Laser Welding Head Packing:

• One Fiber Laser Welding Head
• One Touch Screen Monitor
• One User Manual
• One Controller
• A set of Connection Cables and Line
• One Wire feeding device
• Seven kinds of nozzles
• Two Protective Lens
• One 15v Power Supply
• One Safety Switch Clip

​

Shen Zhen HanWei Laser Enterprise and Feature:

Shenzhen Hanwei Laser Equipment Co., Ltd. presents a variety of laser systems, such as desktop and handheld laser system variants. These systems employ state-of-the-art fiber, pulsed or continuous wave, blue laser, diode laser, and hybrid laser technologies to precisely fulfill the specific requirements of their clientele. Additionally, customized solutions for particular applications are furnished, and training and support are provided to assist their customers in maximizing the utilization of their laser systems. Having offices and distributors spread over Europe, North America, Asia, and the Middle East, Hanwell Laser enjoys a worldwide presence, serving customers globally.

Hanwei Laser concentrates on the laser welding field. The enterprise is committed to providing world-leading laser welding technology to international laser integration enterprises. It endeavors to present excellent welding technology to all integrators. Being among the scarce national high-tech professional emerging enterprises around the world, it is proficient in the research and development, manufacturing, and marketing of diverse welding lasers, laser control systems, laser optical systems, and laser welding procedures within the entire industrial chain.

HanWei Laser offers a range of laser systems, including desktop and handheld laser system models, that use advanced fiber, pulsed or continuous wave, blue laser, diode laser, hybrid laser technology to meet the exact needs of their customers. Also provide custom solutions for specialized applications and offer training and support to help their customers get the most out of their laser systems.

Hanwei Laser has a global presence with offices and distributors in Europe, North America, Asia, and Middle East, making it accessible to customers all over the world.

Shenzhen Hanwei laser equipment Co.,Ltd specializes in laser welding industrial, the company is wholeheartedly dedicated to providing worldwide first-class laser welding technology for all laser integrated businesses in the world.

Main products include :

AMB laser source, Fiber laser source,Diode laser source, YAG laser source, QCW laser source and other type laser sources for laser welding : laser control system : laser optical system : and related products of laser welding.

The company uphold a business philosophy “ Research and Development as the core, Technology as guarantee, Customer focused, Backed by service”, Take “ Reliable quality, Continual improvement , Continuous innovation, Considerate service” as Service tenet.

Hanwei has always been specializes in high precision laser welding, equipment manufacturer of smart device. From the components purchase, R&D manufacture, assembly and test, sales and service, With the world’s most advance’s high precision laser welding solution and machine automation solutions.

Hanwei Laser is one of the most important Hi-tech enterprises of the technological frontier in high precision laser welding in China.

The company brings together local and foreign experts and academic top talents, Has a number of technical talent, who has been long engaged in laser welding field and intelligent equipment’s design and development. Especially in laser source system, laser source power supply, laser source controller, laser optical system design, Digital motion’s control software field with rich experience in theory and practice.

HanWei products are widely used in various industry : Batteries manufacturing, automobile and auto parts manufacturing, electronic circuits and fiber optic communication device manufacturing, mobile phone, household appliances, Kitchen and bathroom hardware, precision instruments, instrumentation, jewel, medical devices, solar energy, optical industry, motor industry and others. The products has achieved high commendations and acknowledgments from users in various industry, have a good reputation and credibility.

HanWei Laser successfully developed a full range of laser welding products with international advanced level. Such as “Dual wavelength compound laser welding” solve the power battery’s aluminum alloy welding speed and penetration of trachoma’s compatibility, “Single lamp & single bar 600W laser source ” solve the low rate of good quality problem of power battery’s seal nails welding. And “MJ level super energy feed-back YAG welding machine” is specifically for below than 0.15mm thickness thin metal’s Ultra-high precision welding.
