    1500W Fiber Handheld Single Motor Laser Welding Machine 0-5mm Welding Beam Size Adjustable

    Ask Lasest Price
    Brand Name : HanWei
    Model Number : HW-20-60150
    Certification : CE
    Price : USD / Set
    Payment Terms : T/T
    Supply Ability : 2000 Sets / year
    Delivery Time : 10 working days
    • Product Details
    • Company Profile

    1500W Fiber Handheld Single Motor Laser Welding Machine 0-5mm Welding Beam Size Adjustable

    1500W Fiber Handheld Single Motor Laser Welding Machine


    Handheld Laser Welding Machine Description:

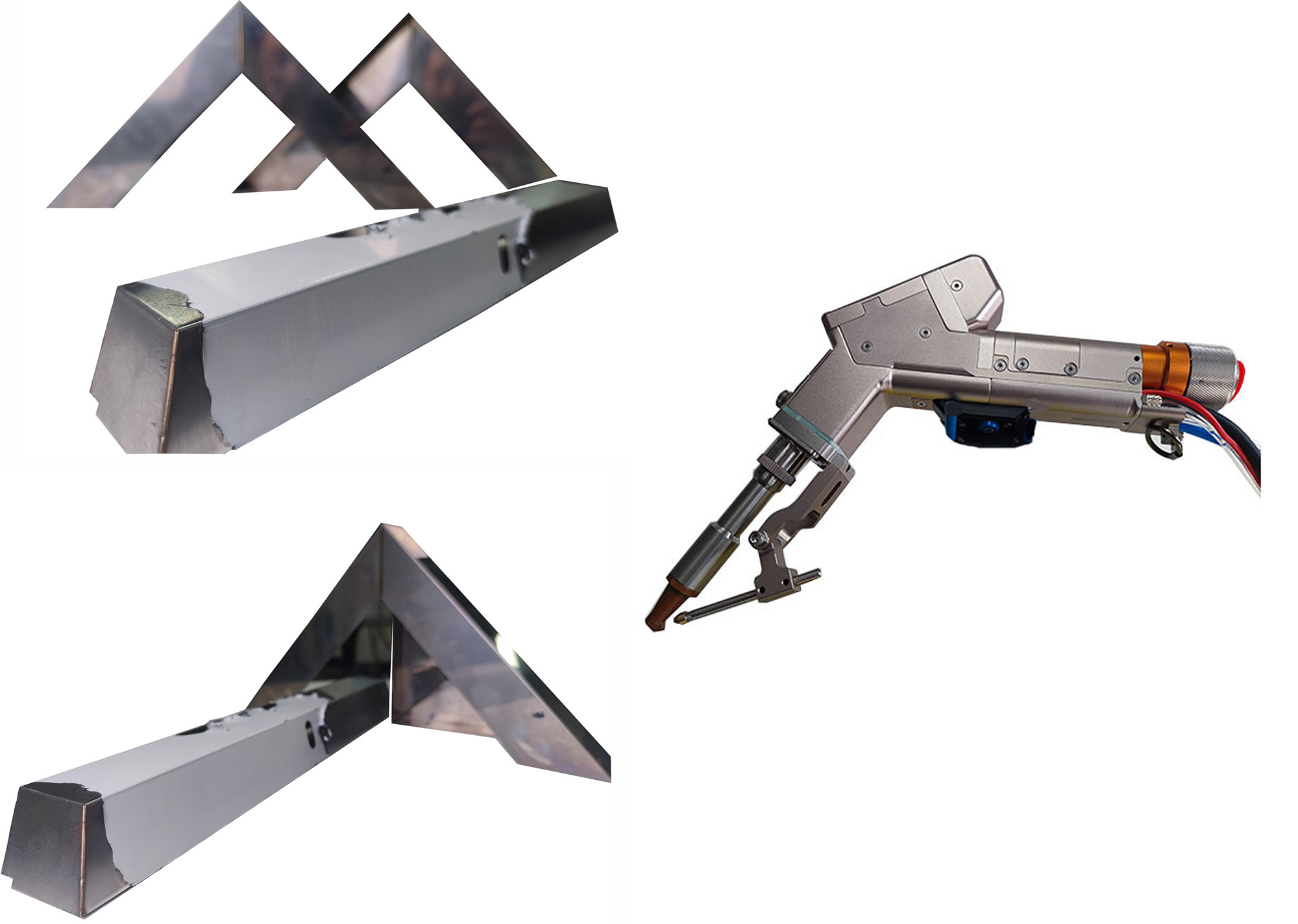

    The Handheld Single Wobble Welding Head is an advanced welding tool. Adopting ergonomic design concepts, it can handle complex welding needs by giving full consideration to the applicability of the welding process as well as the comfort of long-term use. It provides a more efficient and accurate mode of operation for welding.
    The welding head is lightweight, compact and ergonomically designed for a comfortable grip. It can be easily adapted to different welding tasks in various working environments. Whether it is mass production in factories or outdoor on-site repair work, it can achieve good results.

    Handheld Laser Welding Machine Features:

    • Product Name: Fiber Laser Welding Head
    • Handheld Laser Welding Machine
    • Fiber Connector: QBH
    • Laser Beam Size: 0~5mm Adjustable
    • Handheld Laser Gun Weight: 0.7kg
    • Positioning: Red Guide Beam

    The Fibre Laser Welding Head is a high power Fibre Laser Gun equipped with a QBH fibre connector. Its laser beam size can be adjusted within 0 - 5mm, and there is a red guide beam for positioning. This Fiber Optic Laser Welding Nozzle is of light weight and user - friendly, with a total weight of 0.7kg.

    Handheld Laser Welding Machine Technical Parameters:


    Product Name

    Handheld Single Motor Laser Welding Machine

    Position Guide

    Red Guide Light

    Adopt Laser Source

    1064~1080nm Fiber laser source

    Fiber Connector

    QBH

    Welding Beam Form

    Line " 一 "

    Welding Power

    1500W

    Fiber Cable

    10m Standard. (15 / 20m Option)

    Collimation Focal Length

    60mm

    Focusing Focal Length

    150mm

    Handheld Laser Gun Weight

    0.7kg

    Welding Beam Size

    0-5mm Adjustable

    Welding Parameter Save

    30 kinds of different welding parameter save



    Handheld Laser Welding Machine Application Advantages:


    The HanWei HW - 20 - 60150 handheld welding machine is excellent for various scenarios. It's extremely convenient for on - site welding as it's portable and can be used everywhere. The wireless welding function makes it simple and efficient, allowing you to complete welding jobs rapidly. This product is really good for construction, manufacturing, and repair work. It's essential for those who require a dependable and efficient welding machine.
    The handheld single wobble welding machine is a great substitute for traditional argon arc welding and electric welding when dealing with thin metal plates like stainless steel, steel, and aluminium. The welding head is light, small, and designed ergonomically for a comfortable grip. There's a safety lock with a touch - out light. It's easy to use and has very low demands on the operator. The weld seam is nice, the speed is fast, and there are no weld marks, no discolouration, and no need for later grinding. It has strong anti - interference and is equipped with a self - developed control system.

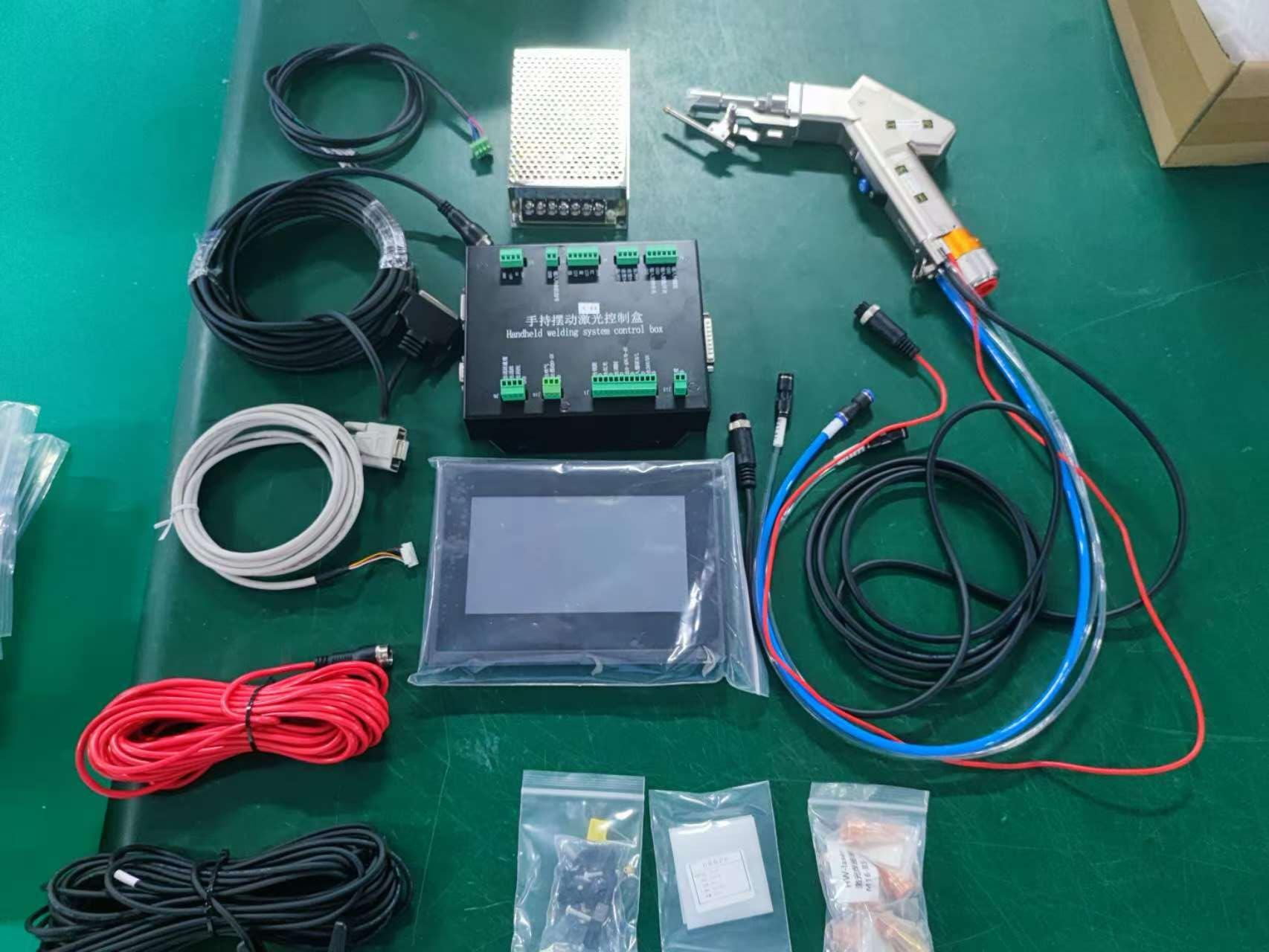

    Handheld Laser Welding Machine Packing:
    • One Fiber Laser Welding Head
    • One User Manual
    • One 15v Power Supply
    • One Wire feeding device
    • Seven kinds of nozzle
    • Two Protective Lens
    • A set of Connection Cables and Line
    • One Safety Switch Clip
    • One Touch Screen Monitor
    • One Controller


    Shen Zhen HanWei Laser Enterprise and Feature:


    Shenzhen Hanwei Laser Equipment Co., Ltd. offers a range of laser systems, including desktop and handheld laser system models, that use advanced fiber, pulsed or continuous wave, blue laser, diode laser, hybrid laser technology to meet the exact needs of their customers. Also provide custom solutions for specialized applications and offer training and support to help their customers get the most out of their laser systems. With offices and distributors across Europe, North America, Asia, and the Middle East, Hanwell Laser has a global footprint, catering to customers worldwide.
    Hanwei Laser focuses on the laser welding industry. The company is dedicated to supplying world-class laser welding technology to global laser integrated companies. It aims to offer top-notch welding technology to all integrators. As one of the few national high-tech professional new enterprises globally, it specializes in the R&D, production, and sales of various welding lasers, laser control systems, laser optical systems, and laser welding processes throughout the industrial chain.
