    Handheld Double Motor- Laser Welding Head for 2000W Laser Cutting Aluminium Steel

    Ask Lasest Price
    Brand Name : HanWei
    Model Number : HW-20-50150
    Certification : CE
    Price : Negotiable
    Delivery Time : 10 working days.
    Payment Terms : T/T
    Supply Ability : 2000 set /month.
    • Product Details
    • Company Profile

    Handheld Double Motor- Laser Welding Head for 2000W Laser Cutting Aluminium Steel


    Handheld Double Motor- Laser Welding Head for 2000W Laser Cutting Aluminium Steel

    Product Description:

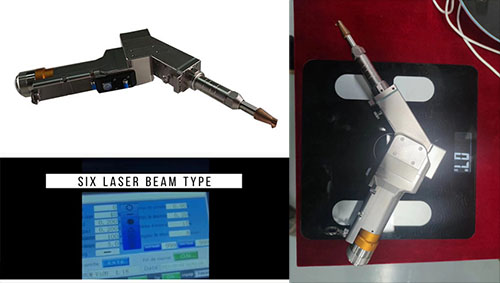

    The welding beam form of this handheld welding gun can be adjusted to suit the needs of the user. The welding beam can take on different shapes including ―,○,◎,⊙,△, and 8, making it a versatile tool that can handle a wide range of welding tasks.

    The lens material of this portable welding head is made of high-quality aluminum alloy and stainless steel, which ensures durability and longevity. Additionally, the collimating length of the welding head is 50, which helps to focus the welding beam and improve accuracy.

    Powered by electricity, this portable welding gun is easy to use and requires minimal setup. Simply plug it in and start welding. The handheld design of this welding gun makes it easy to maneuver and control, allowing for precise and accurate welding.

    Whether you are a professional welder or a DIY enthusiast, the Handheld Welding Head is a versatile and reliable tool that can help you get the job done. With its adjustable welding beam form, high-quality lens material, and convenient handheld design, this portable welding gun is a must-have for anyone who needs to weld on the go.

    Features:

    • Product Name: Handheld Welding Head
    • Power Source: Electric
    • Welding Parameter Save: 30 Kinds Of Welding Parameter Saving
    • Head Type: Portable Handheld Laser Gun
    • Gas: Argon / Nitrogen
    • Welding Width: 0~5mm Adjustable

    This product is a versatile portable welding gun also known as a handheld welding gun or handheld welder . It is powered by electricity and can save up to 30 kinds of welding parameters. The head type is a portable handheld laser gun, and it uses either Argon or Nitrogen gas. The welding width can be adjusted from 0 to 5mm.


    Laser Gun Specification:


    Handheld Laser Gun Size216*287 mm
    Handheld Laser Gun Weight0.7 Kg
    Handheld Laser Gun MaterialsAluminium alloy & Stainless Steel
    Laser Head ConnectionQBH
    Adopt Laser Source1064~1080nm Fiber laser source
    Laser PowerUp to 2000w
    Safety SwitchLaser Button & Clip & Emergency Stop
    PositionRed point guide beam
    Welding Laser Beam Size0-5mm Welding
    Welding Beam Form―,○,◎,⊙,△,8 .
    Welding MaterialsSteel / Stainless Steel / Aluminium
    Welding ThicknessDepend on Laser source
    Welding SpeedDepend on operator control
    Welding Parameter InputTouch Screen Monitor
    Language in control systemEnglish (Support Customized)
    Welding parameter storage30 kinds of different welding parameter save
    Wire Feeding ParameterDigital Data Input in monitor
    Feeding WiresStandard type : 0.8&1.0&1.2&1.6mm wire
    Option : 2mm wire
    Double Route Wire FeederOption (Same time double route feeding)
    Cooling methodWater Cooling
    Cooling waterPurified water
    GasArgon / Nitrogen

    Support and Services:

    The Handheld Welding Head is a compact and lightweight welding solution designed for easy handling and precise welding performance. Our product technical support and services include:

    • Expert guidance on product selection and usage
    • Installation and setup assistance
    • Training and education on proper use and maintenance
    • Technical troubleshooting and repair services
    • Warranty and post-warranty support

    Our team of experienced technicians and engineers are dedicated to providing timely and effective solutions to any technical issues that may arise with your Handheld Welding Head. We are committed to ensuring the highest level of customer satisfaction and product performance.
