2000W Handheld Single Motor Laser Cleaning Machine for Cleaning Thin Carbon Steel

2000W Handheld Single Motor Laser Cleaning Machine for Cleaning Thin Carbon Steel Description:

2000W Handheld Single Motor Laser Cleaning Machine for Cleaning Thin Carbon Steel Features:

• Product Name: Fiber Laser Cleaning Machine
• Laser Power: 2000W
• Cleaning Laser Beam Size: 0-300mm Adjustable
• Handheld Laser Gun Weight: 0.7kg
• Positioning: Red Guide Beam
• Wavelength: 1064nm~1080nm
• Laser Head Connection: QBH
• Cleaning Laser Beam Form: Line “一”
• Cleaning Materials: Carbon Steel / Stainless Steel
• Standard Focus length: 50 & 500mm standard Focus length adjustable
• Machine Electric Consumption: 8 Kw/h about
• Gas: Nitrogen / No Gas

The Fiber Laser Cleaning Nozzle, a premium attachment for fiber lasers that incorporates a QBH fiber optic connector, exhibits exceptional performance capabilities. This fiber laser cleaning tool is incredibly lightweight and user - friendly, tipping the scales at just 0.7 kilograms. The diameter of its cleaning laser beam can be flexibly adjusted anywhere from 0 to 300 millimeters. Moreover, it comes fitted with a red aiming beam, enabling accurate and precise alignment.

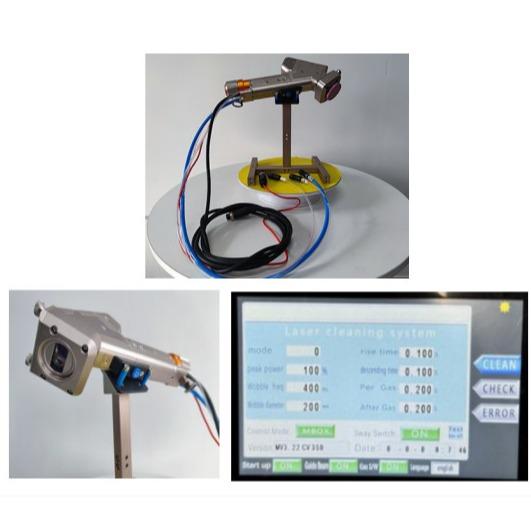

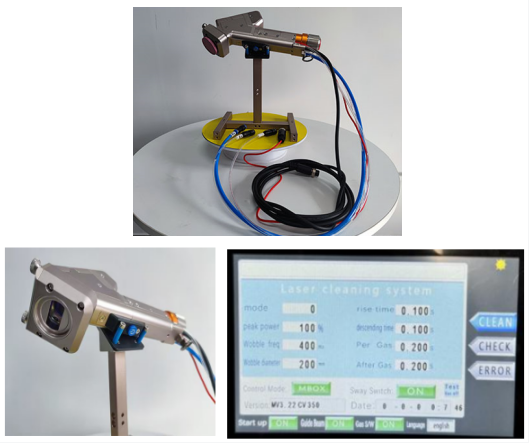

2000W Handheld Single Motor Laser Cleaning Machine for Cleaning Thin Carbon Steel Technical Parameters:

Product Name	Handheld Single Motor Laser Cleaning Machine
Adopt Laser Source	1064~1080nm Fiber laser source
Handheld Laser Gun Weight	0.7 KG
Laser Power	2000W
Laser Output Mode	CW
Cleaning Beam Size	0-300mm Adjustable
Cleaning Beam Form	Line " 一 "
Fiber Connector	QBH
Fiber Cable	10m Standard. (15 / 20m Option)
Standard Focus Length	50 & 500mm standard Focus length adjustable
Position Guide	Red Guide Light
Cleaning Parameter Save	10 kinds of different welding parameter save

2000W Handheld Single Motor Laser Cleaning Machine for Cleaning Thin Carbon Steel Application Advantages:

The HanWei HW-20-50500 portable cleaning device exhibits remarkable practical benefits. It offers unparalleled maneuverability. With its sleek and lightweight build, it can be effortlessly carried and initiated, rendering it perfect for cleaning in tight quarters and for on-the-go cleaning assignments. This significantly boosts operational versatility, as it doesn't rely on complex machinery or a sizable workforce.

The handheld single-oscillation cleaning probe showcases extraordinary adaptability. It can adeptly deal with diverse surface materials, a wide array of object forms, and varying degrees of grime. Whether applied to vehicle upkeep, household cleaning, or industrial equipment servicing, its performance remains unwavering. Additionally, it is both energy-efficient and economical. The single-motor configuration saves energy while delivering ample cleaning force. It streamlines the cleaning procedure, cutting down on both time and energy usage. Owing to its uncomplicated structure, it incurs lower production and maintenance costs. It is user-friendly and doesn't necessitate specialized training, enabling all users to operate it with ease and reducing operational mistakes and training expenditures.

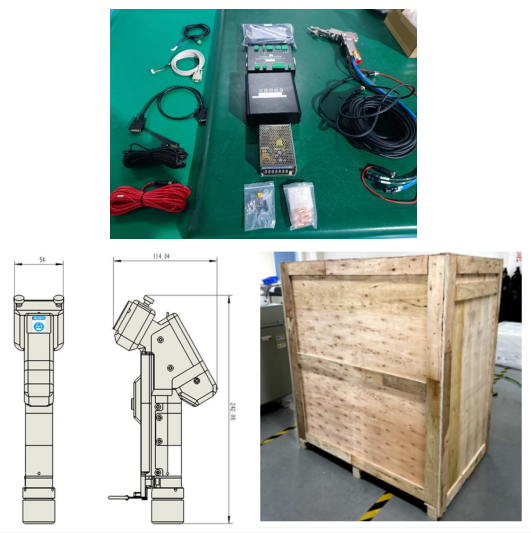

2000W Handheld Single Motor Laser Cleaning Machine for Cleaning Thin Carbon Steel Packing:

• One Handheld Laser Head
• One Touch Screen Monitor
• Two Protective Lens
• One 15v Power Supply
• A set of Connection Cables and Line
• One Safety Switch Clip
• One Controller
• One Dust Cover
• One User Manual

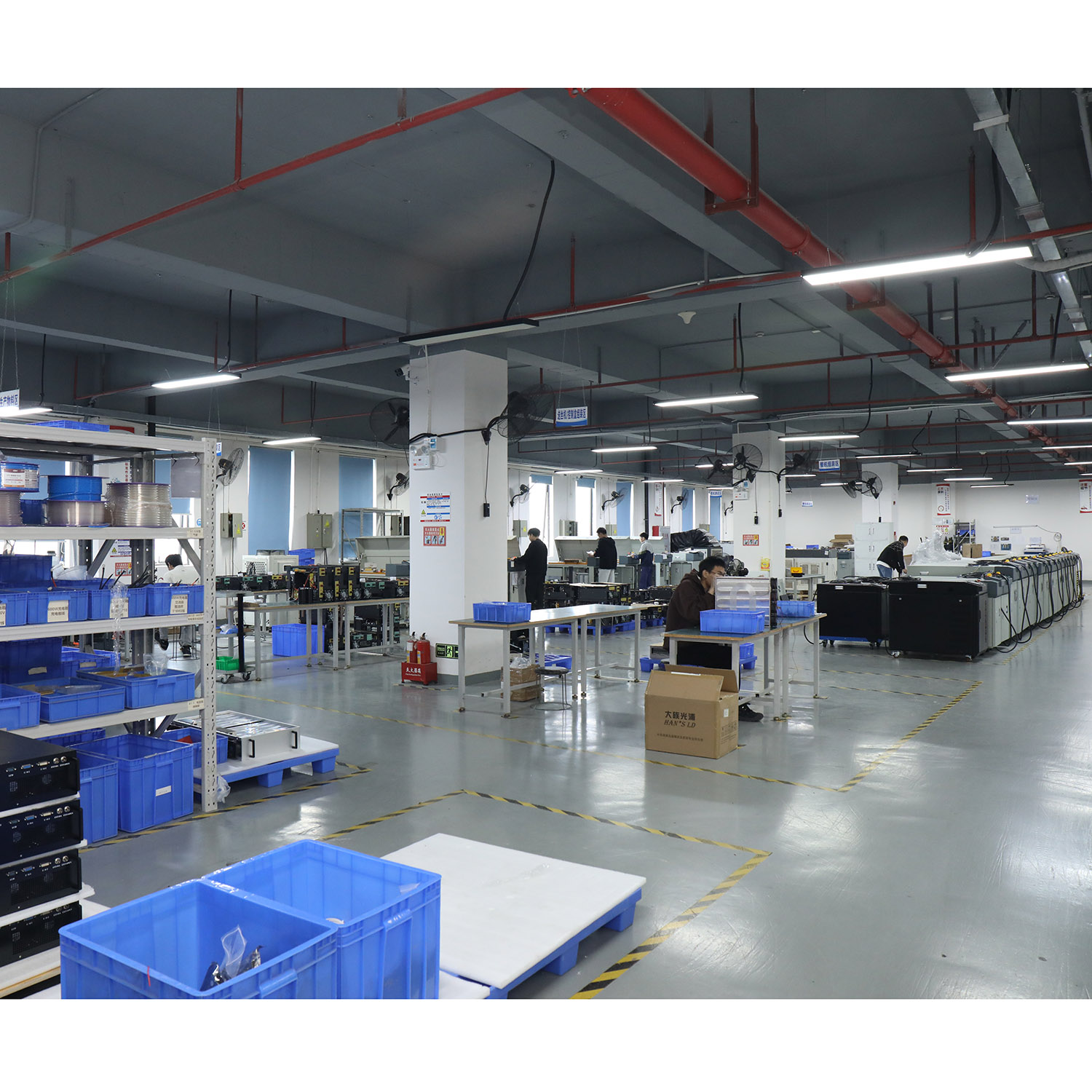

Shen Zhen HanWei Laser Enterprise and Feature:

Shenzhen Hanwei Laser Equipment Co., Ltd. is committed to offering world - class welding technology solutions to integrators worldwide. It stands as one of the few global enterprises that can fully concentrate on the research, development, production, and promotion of various welding lasers, laser control systems, laser optical elements, and laser welding methodologies. As a national high - tech and specialized - sophisticated enterprise, it enjoys a complete industrial chain.

Hanwei Laser has successfully developed a range of welding laser products of internationally advanced standards. Take, for instance, the AMB spot - ring spot welding machine, which utilizes unique technical methods that are not found in other global companies. Additionally, the "AMB spot - ring spot + blue light composite oscillating welding machine" not only bridges a domestic technological void but also takes the lead globally in this field. It effectively addresses challenges such as fluctuating welding quality, uneven welding surfaces, and spattering during the laser welding of highly reflective materials like copper and gold. Moreover, the "AMB spot - ring spot + semiconductor composite welding machine" solves the problems of inconsistent fusion depth and variable welding speeds when welding power battery aluminum materials. Furthermore, the "semiconductor + single - lamp single - rod 600W composite laser welding machine" overcomes the obstacles of low production efficiencies, poor welding quality, and slow processing rates in the sealing nail welding of power batteries.

HanWei Laser offers a range of laser systems, including desktop and handheld laser system models, that use advanced fiber, pulsed or continuous wave, blue laser, diode laser, hybrid laser technology to meet the exact needs of their customers. Also provide custom solutions for specialized applications and offer training and support to help their customers get the most out of their laser systems.

Hanwei Laser has a global presence with offices and distributors in Europe, North America, Asia, and Middle East, making it accessible to customers all over the world.

Shenzhen Hanwei laser equipment Co.,Ltd specializes in laser welding industrial, the company is wholeheartedly dedicated to providing worldwide first-class laser welding technology for all laser integrated businesses in the world.

Main products include :

AMB laser source, Fiber laser source,Diode laser source, YAG laser source, QCW laser source and other type laser sources for laser welding : laser control system : laser optical system : and related products of laser welding.

The company uphold a business philosophy “ Research and Development as the core, Technology as guarantee, Customer focused, Backed by service”, Take “ Reliable quality, Continual improvement , Continuous innovation, Considerate service” as Service tenet.

Hanwei has always been specializes in high precision laser welding, equipment manufacturer of smart device. From the components purchase, R&D manufacture, assembly and test, sales and service, With the world’s most advance’s high precision laser welding solution and machine automation solutions.

Hanwei Laser is one of the most important Hi-tech enterprises of the technological frontier in high precision laser welding in China.

The company brings together local and foreign experts and academic top talents, Has a number of technical talent, who has been long engaged in laser welding field and intelligent equipment’s design and development. Especially in laser source system, laser source power supply, laser source controller, laser optical system design, Digital motion’s control software field with rich experience in theory and practice.

HanWei products are widely used in various industry : Batteries manufacturing, automobile and auto parts manufacturing, electronic circuits and fiber optic communication device manufacturing, mobile phone, household appliances, Kitchen and bathroom hardware, precision instruments, instrumentation, jewel, medical devices, solar energy, optical industry, motor industry and others. The products has achieved high commendations and acknowledgments from users in various industry, have a good reputation and credibility.

HanWei Laser successfully developed a full range of laser welding products with international advanced level. Such as “Dual wavelength compound laser welding” solve the power battery’s aluminum alloy welding speed and penetration of trachoma’s compatibility, “Single lamp & single bar 600W laser source ” solve the low rate of good quality problem of power battery’s seal nails welding. And “MJ level super energy feed-back YAG welding machine” is specifically for below than 0.15mm thickness thin metal’s Ultra-high precision welding.
