2000W Fiber Optic Welding Head Capable of Welding Carbon Steel and Stainless Steel

Shenzhen Hanwei Laser Equipment Co., Ltd.
Trust Seal
Verified Supplier
Credit Check
Supplier Assessment
Contact Now
    Buy cheap 2000W Fiber Optic Welding Head Capable of Welding Carbon Steel and Stainless Steel from wholesalers

    Buy cheap 2000W Fiber Optic Welding Head Capable of Welding Carbon Steel and Stainless Steel from wholesalers
    • Buy cheap 2000W Fiber Optic Welding Head Capable of Welding Carbon Steel and Stainless Steel from wholesalers
    • Buy cheap 2000W Fiber Optic Welding Head Capable of Welding Carbon Steel and Stainless Steel from wholesalers
    • Buy cheap 2000W Fiber Optic Welding Head Capable of Welding Carbon Steel and Stainless Steel from wholesalers

    2000W Fiber Optic Welding Head Capable of Welding Carbon Steel and Stainless Steel

    Ask Lasest Price
    Brand Name : HanWei
    Model Number : HW-36-XXXXXX-Y-T-QBH
    Certification : CE
    Price : USD / Set
    Payment Terms : T/T
    Supply Ability : 1000 Sets / year
    Delivery Time : 10 -15 working days
    • Product Details
    • Company Profile

    2000W Fiber Optic Welding Head Capable of Welding Carbon Steel and Stainless Steel

    2000W Fiber Optic Welding Head Capable of Welding Carbon Steel and Stainless Steel


    2000W Fiber Optic Welding Head Capable of Welding Carbon Steel and Stainless Steel Description:


    The HW-36-XXXXXX-Y-T-QBH fiber optic welding head is characterized by its small size and light weight, making it suitable for use in various scenarios such as being matched with manipulators, robots, workbenches, etc. It can be optionally equipped with two major series of lenses, namely the 36-lens series and the 50-lens series, enabling it to cover lasers with a power range of 70W to 6000W. It has a built-in function to resist blue light and prevent laser output flickering. The internal structure is completely enclosed to protect the optics from dust contamination, and the entire system is integrated with a water circuit. There are two gas blowing methods (coaxial and off-axis), which can effectively reduce the damage to the protective lens caused by spatter during welding in different environments.

    2000W Fiber Optic Welding Head Capable of Welding Carbon Steel and Stainless Steel Features:

    • Product Name: Fiber Optic Welding Head
    • Applicable Power: ≤2000W
    • Optional Types: Y/F/T ( Y - type is commonly used )
    • Interface Type: QBH

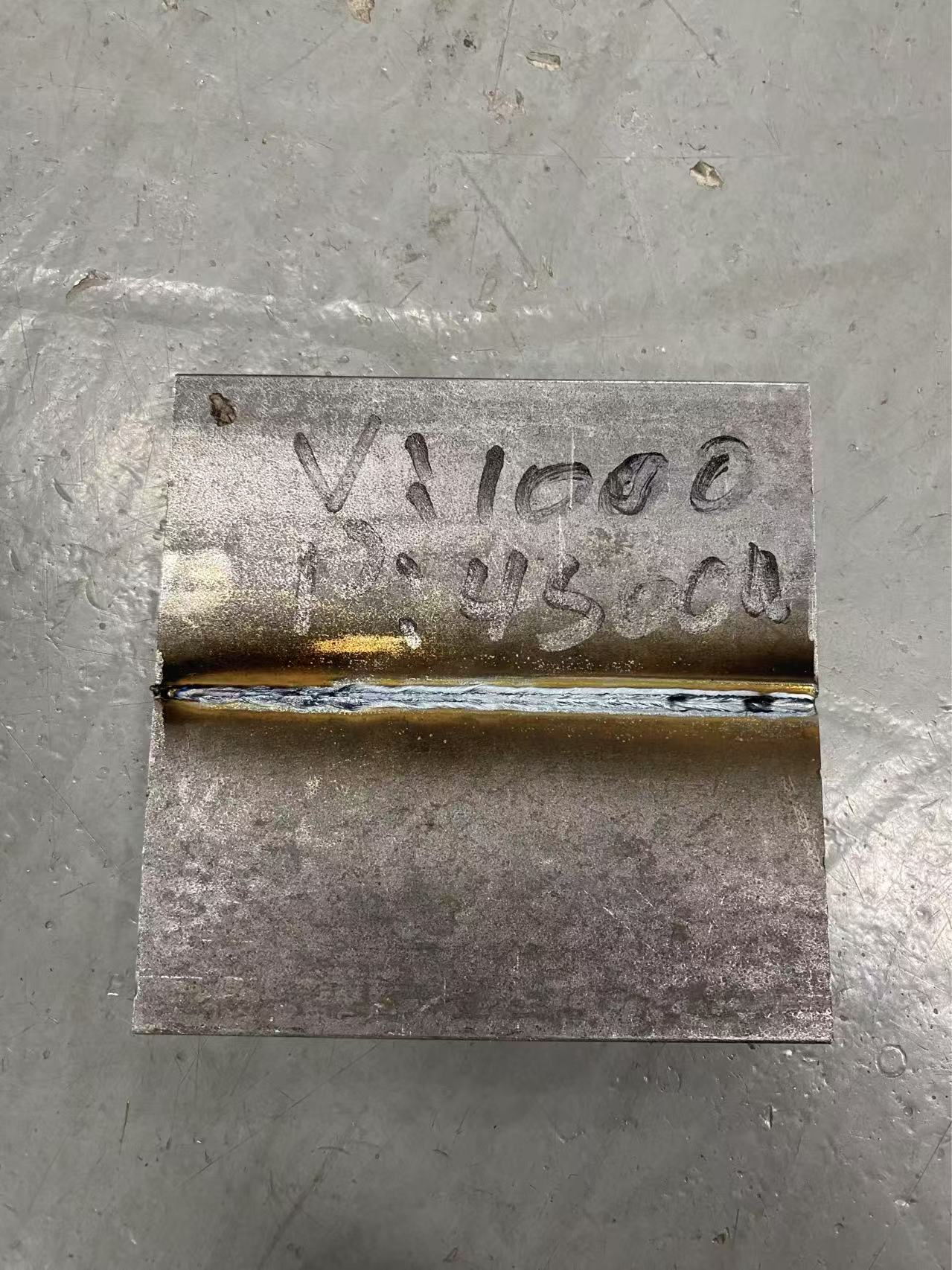

    • Welding Materials: Carbon Steel / Stainless Steel
    • Overall Weight: 1.5 Kg

    The Fiber Optic Welding Head is a top - notch device engineered for high - quality welding. It comes with a QBH interface, ensuring seamless connectivity. Applicable for power up to 2000W, it can handle both carbon steel and stainless - steel welding. You can choose from Y/F/T types, with the Y - type being the popular choice. Boasting a lightweight design with an overall weight of 1.5Kg, it's crafted with the end - user's comfort in mind, making it an ideal option for diverse welding needs.

    2000W Fiber Optic Welding Head Capable of Welding Carbon Steel and Stainless Steel Technical Parameters:


    Product Name

    Fiber Optic Welding Head

    Wavelength

    1070nm

    Applicable Power

    ≤2000W

    Overall Weight

    1.5kg

    Interface Type

    QBH

    Collimation Focal Length

    80/100/120/150/200mm

    Focusing Focal Length

    150/200/250/350mm

    Optional Types

    Y/F/T ( Y - type is commonly used )

    Welding Materials

    Carbon Steel / Stainless Steel



    2000W Fiber Optic Welding Head Capable of Welding Carbon Steel and Stainless Steel Application Advantages:


    • Cost-effective and efficient
    • Built-in blue light anti-laser output flicker
    • Covering laser power 70W-6000W
    • Water - circuit integrated system. (Coaxial, paraxial) blowing mode
    • Fully enclosed internal structure to protect optics from dust
    • Suitable for any occasion with manipulators, robots, workbenches

    Shen Zhen HanWei Laser Enterprise and Feature:


    Shenzhen Hanwei Laser Equipment Co., Ltd. offers an extensive array of laser equipment, including both desktop and handheld models. These set - ups utilize state - of - the - art fiber, pulsed or continuous - wave, blue laser, diode laser, and hybrid laser technologies. They are meticulously engineered to fulfill the unique demands of customers. Moreover, the company furnishes tailored solutions for specific applications and provides training and support to help customers maximize the utilization of their laser systems. With branches and affiliates distributed across Europe, North America, Asia, and the Middle East, Hanwei Laser has achieved a worldwide footprint, catering to clients around the globe.


    Hanwei Laser focuses its core operations on the domain of laser welding. The company is dedicated to supplying international laser integration companies with premier laser welding technology. Its objective is to deliver high - grade welding technology to all integrators. As one of the scarce global national high - tech specialized and emerging enterprises, it specializes in the research, development, manufacturing, and marketing of various welding lasers, laser control systems, laser optical systems, and laser welding processes throughout the entire industrial chain.
