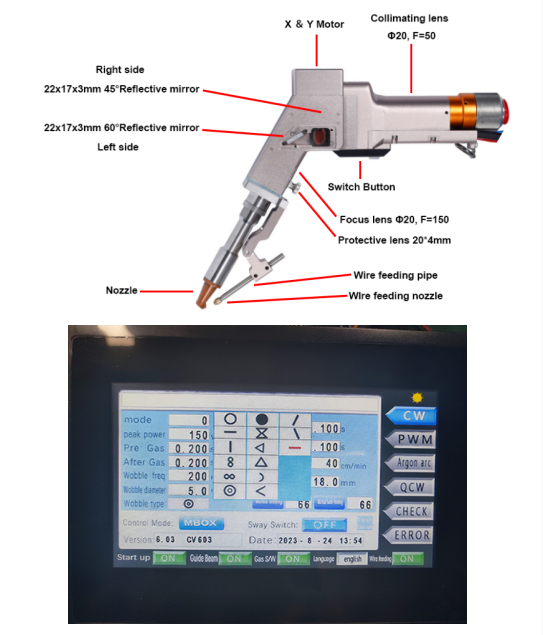

Handheld Double Wobble Laser Welding Head with 60° & 45° Reflective Lenses

Handheld Double Wobble Laser Welding Head with 60° & 45° Reflective Lenses Description:

Handheld Double Wobble Laser Welding Head with 60° & 45° Reflective Lenses Features:

• Product Name: Fiber Laser Welding Head
• Handheld Laser Gun Weight: 0.7kg
• Reflective Lens: 60° Reflective & 45° Reflective
• Fiber Connector: QBH
• Welding Beam Form: —,o,◎,◎,△,8
• Laser Beam Size: 0~5mm Adjustable
• Positioning: Red Guide Beam
• Gas: Argon / Nitrogen

The Fiber Laser Welding Head is a high - quality fiber laser device equipped with a QBH fiber coupler. The diameter of its laser beam can be adjusted within the range of 0 to 5 mm. Additionally, it is provided with a red alignment beam for accurate positioning.

This fiber optic laser welding tip is extremely light. It has been meticulously designed to improve the comfort of the end - user, and it only weighs 0.7 kg in total.

Handheld Double Wobble Laser Welding Head with 60° & 45° Reflective Lenses Technical Parameters:

Product Name	Handheld Double Wobble Laser Welding Head
Welding Beam Form	—,o,◎,◎,△,8
Welding Power	Up to 2000W
Handheld Laser Gun Weight	0.7kg
Reflective Lens	60° Reflective & 45° Reflective
Welding Beam Size	0-5mm Adjustable
Fiber Connector	QBH
Collimation Focal Length	60mm
Focusing Focal Length	150mm
Adopt Laser Source	1064~1080nm Fiber laser source
Position Guide	Red Guide Light
Welding Parameter Save	30 kinds of different welding parameter save

Handheld Double Wobble Laser Welding Head with 60° & 45° Reflective Lenses Application Advantages:

The HanWei HW - 20 - 60150 handheld welding apparatus, featuring Reflective Lenses of 60° and 45° reflection angles, exhibits extraordinary performance in various scenarios. Its mobility offers unmatched convenience for on - site welding operations, allowing it to be utilized almost anywhere. The wireless welding function simplifies the operating process, facilitating the rapid accomplishment of welding jobs. This product holds great significance in the construction, manufacturing, and repair sectors, emerging as an essential tool for those seeking a dependable and efficient welding solution.

The handheld dual - oscillating welding machine serves as a superb substitute for conventional argon arc welding and electric welding methods when dealing with thin metal sheets like stainless steel, regular steel, and aluminum. The welding head is characterized by a light - weight build, a compact design that conserves space, and an ergonomic arrangement to guarantee a comfortable hold. It is fitted with a safety catch and a touch - sensitive indicator lamp. Its user - friendly design imposes few demands on the operator. The quality of the weld seam is excellent, the welding speed is fast, and there are no welding marks or color changes, thus eliminating the need for post - welding grinding. It shows strong anti - interference ability and is equipped with an in - house developed control system.

Handheld Double Wobble Laser Welding Head with 60° & 45° Reflective Lenses Packing:

• One User Manual
• A set of Connection Cables and Line
• One Wire feeding device
• One Fiber Laser Welding Head
• One 15v Power Supply
• Two Protective Lens
• One Touch Screen Monitor
• One Controller
• Seven kinds of nozzles
• One Safety Switch Clip

​

Shen Zhen HanWei Laser Enterprise and Feature:

Shenzhen Hanwei Laser Equipment Co., Ltd. provides a diverse range of laser set - ups, including both desktop and handheld types. These systems incorporate state - of - the - art fiber, pulsed or continuous - wave, blue laser, diode laser, and hybrid laser technologies, carefully meeting the distinct requirements of their customers. Moreover, they offer customized solutions for specific uses and provide training and assistance to enable customers to make full use of the capabilities of their laser systems. With branches and affiliated companies scattered across Europe, North America, Asia, and the Middle East, Hanwei Laser has established a global presence, serving clients around the world.

Hanwei Laser centers its core business on the field of laser welding. The firm is committed to offering first - rate laser welding technology to international laser integration enterprises. It strives to provide high - quality welding technology to all integrators. As one of the few global national high - tech specialized and innovative enterprises, it specializes in the research, development, production, and sales of various welding lasers, laser control systems, laser optical systems, and laser welding processes throughout the entire industrial chain.

HanWei Laser offers a range of laser systems, including desktop and handheld laser system models, that use advanced fiber, pulsed or continuous wave, blue laser, diode laser, hybrid laser technology to meet the exact needs of their customers. Also provide custom solutions for specialized applications and offer training and support to help their customers get the most out of their laser systems.

Hanwei Laser has a global presence with offices and distributors in Europe, North America, Asia, and Middle East, making it accessible to customers all over the world.

Shenzhen Hanwei laser equipment Co.,Ltd specializes in laser welding industrial, the company is wholeheartedly dedicated to providing worldwide first-class laser welding technology for all laser integrated businesses in the world.

Main products include :

AMB laser source, Fiber laser source,Diode laser source, YAG laser source, QCW laser source and other type laser sources for laser welding : laser control system : laser optical system : and related products of laser welding.

The company uphold a business philosophy “ Research and Development as the core, Technology as guarantee, Customer focused, Backed by service”, Take “ Reliable quality, Continual improvement , Continuous innovation, Considerate service” as Service tenet.

Hanwei has always been specializes in high precision laser welding, equipment manufacturer of smart device. From the components purchase, R&D manufacture, assembly and test, sales and service, With the world’s most advance’s high precision laser welding solution and machine automation solutions.

Hanwei Laser is one of the most important Hi-tech enterprises of the technological frontier in high precision laser welding in China.

The company brings together local and foreign experts and academic top talents, Has a number of technical talent, who has been long engaged in laser welding field and intelligent equipment’s design and development. Especially in laser source system, laser source power supply, laser source controller, laser optical system design, Digital motion’s control software field with rich experience in theory and practice.

HanWei products are widely used in various industry : Batteries manufacturing, automobile and auto parts manufacturing, electronic circuits and fiber optic communication device manufacturing, mobile phone, household appliances, Kitchen and bathroom hardware, precision instruments, instrumentation, jewel, medical devices, solar energy, optical industry, motor industry and others. The products has achieved high commendations and acknowledgments from users in various industry, have a good reputation and credibility.

HanWei Laser successfully developed a full range of laser welding products with international advanced level. Such as “Dual wavelength compound laser welding” solve the power battery’s aluminum alloy welding speed and penetration of trachoma’s compatibility, “Single lamp & single bar 600W laser source ” solve the low rate of good quality problem of power battery’s seal nails welding. And “MJ level super energy feed-back YAG welding machine” is specifically for below than 0.15mm thickness thin metal’s Ultra-high precision welding.
