Handheld Single Motor Laser Welding Machine with Four Laser Welding Modes

Handheld Laser Welding Machine with Four Laser Welding Modes Description:

Handheld Laser Welding Machine with Four Laser Welding Modes Features:

• Handheld Laser Welding Machine
• Product Name: Fiber Laser Welding Head
• Handheld Laser Gun Weight: 0.7kg
• Fiber Cable: 10m Standard. (15 / 20m Option)
• Laser Beam Size: 0~5mm Adjustable
• Positioning: Red Guide Beam
• Fiber Connector: QBH
• Gas: Argon / Nitrogen

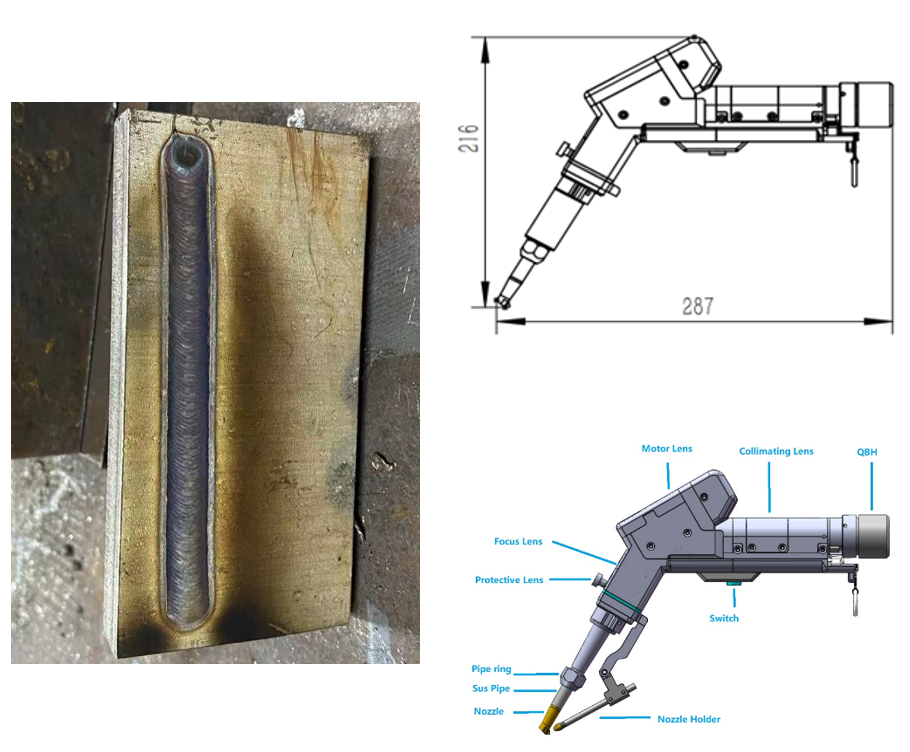

The Fibre Laser Welding Head is a high - performing Fibre Laser Device equipped with a QBH fibre coupler. The diameter of its laser beam can be adjusted within the range of 0 - 5mm, and it is furnished with a red alignment beam for accurate positioning. This Fiber Optic Laser Welding Tip is lightweight, with a total weight of merely 0.7kg, and is designed with the utmost consideration for the end - user's comfort.

Handheld Laser Welding Machine with Four Laser Welding Modes Technical Parameters:

Product Name	Handheld Single Motor Laser Welding Machine
Adopt Laser Source	1064~1080nm Fiber laser source
Welding Power	1500W
Handheld Laser Gun Weight	0.7kg
Welding Beam Form	Line " 一 "
Welding Beam Size	0-5mm Adjustable
Welding Parameter Save	30 kinds of different welding parameter save
Collimation Focal Length	60mm
Focusing Focal Length	150mm
Fiber Connector	QBH
Position Guide	Red Guide Light
Cooling method in Winter	Add Antifreeze

Handheld Laser Welding Machine with Four Laser Welding Modes Application Advantages:

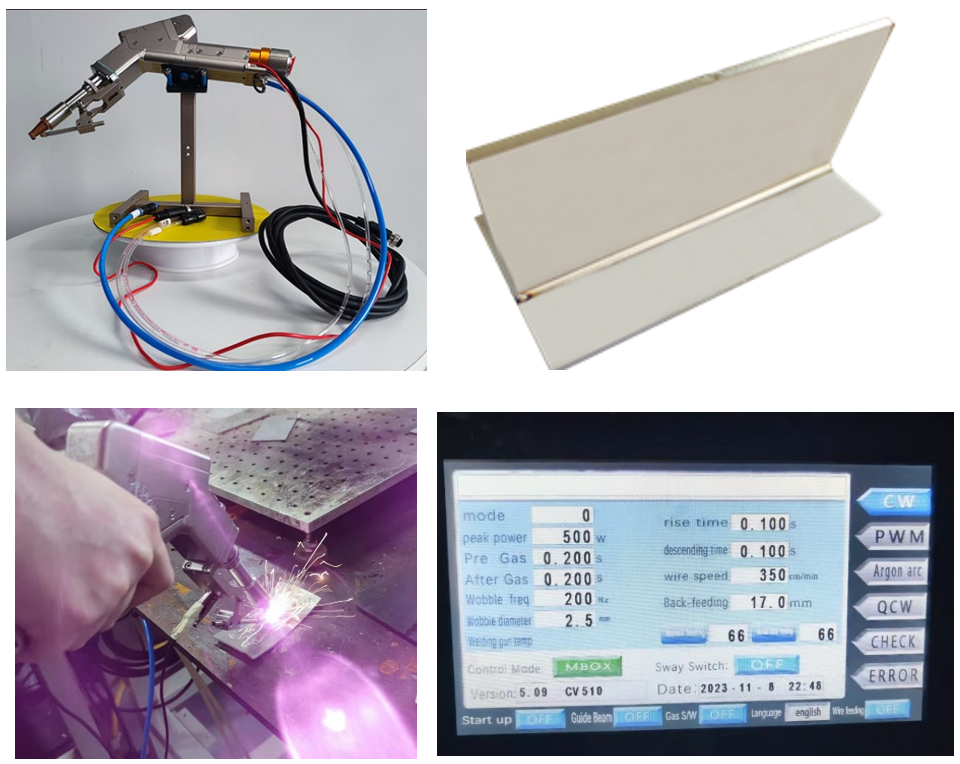

The HanWei HW-DZJS-1500 handheld welding device showcases remarkable capabilities in numerous scenarios. Its portability provides unparalleled convenience for on - site welding, enabling it to be utilized almost everywhere. The cable - free welding feature streamlines the operation, hastening the rapid completion of welding tasks. This product is highly valuable in the construction, manufacturing, and repair industries, emerging as an indispensable tool for those in search of a reliable and efficient welding instrument.

The handheld single oscillating welding machine serves as an excellent alternative to traditional argon arc welding and electric welding techniques when working with thin metal sheets such as stainless steel, steel, and aluminum. The welding torch is lightweight, compact, and ergonomically crafted to ensure a comfortable grip. It is equipped with a safety lock and a touch - sensitive indicator light. Its user - friendly design places minimal requirements on the operator. The weld seam is of superior quality, the welding speed is fast, and there are no welding marks or color alterations, thus eliminating the need for post - welding grinding. It demonstrates robust anti - interference capabilities and is equipped with an internally developed control system.

Handheld Laser Welding Machine with Four Laser Welding Modes Packing:

• One Fiber Laser Welding Head
• One Wire feeding device
• One Controller
• One 15v Power Supply
• A set of Connection Cables and Line
• Seven kinds of nozzles
• Two Protective Lens
• One Touch Screen Monitor
• One Safety Switch Clip
• One User Manual

​

Shen Zhen HanWei Laser Enterprise and Feature:

Shenzhen Hanwei Laser Equipment Co., Ltd. presents a diverse range of laser equipment, including both desktop and handheld types. These setups incorporate advanced fiber, pulsed or continuous wave, blue laser, diode laser, and hybrid laser technologies, carefully designed to meet the distinct requirements of customers. Additionally, they offer customized solutions for particular applications and provide training and assistance to enable customers to make the most of their laser systems. With branches and subsidiaries spanning Europe, North America, Asia, and the Middle East, Hanwei Laser has established a global presence, serving clients around the globe.

Hanwei Laser centers its core business on the field of laser welding. The company is committed to providing international laser integration enterprises with world - class laser welding technology. It aims to offer top - tier welding technology to all integrators. As one of the few global national high - tech specialized and emerging enterprises, it specializes in the R & D, production, and marketing of various welding lasers, laser control systems, laser optical systems, and laser welding processes across the entire industrial chain.

HanWei Laser offers a range of laser systems, including desktop and handheld laser system models, that use advanced fiber, pulsed or continuous wave, blue laser, diode laser, hybrid laser technology to meet the exact needs of their customers. Also provide custom solutions for specialized applications and offer training and support to help their customers get the most out of their laser systems.

Hanwei Laser has a global presence with offices and distributors in Europe, North America, Asia, and Middle East, making it accessible to customers all over the world.

Shenzhen Hanwei laser equipment Co.,Ltd specializes in laser welding industrial, the company is wholeheartedly dedicated to providing worldwide first-class laser welding technology for all laser integrated businesses in the world.

Main products include :

AMB laser source, Fiber laser source,Diode laser source, YAG laser source, QCW laser source and other type laser sources for laser welding : laser control system : laser optical system : and related products of laser welding.

The company uphold a business philosophy “ Research and Development as the core, Technology as guarantee, Customer focused, Backed by service”, Take “ Reliable quality, Continual improvement , Continuous innovation, Considerate service” as Service tenet.

Hanwei has always been specializes in high precision laser welding, equipment manufacturer of smart device. From the components purchase, R&D manufacture, assembly and test, sales and service, With the world’s most advance’s high precision laser welding solution and machine automation solutions.

Hanwei Laser is one of the most important Hi-tech enterprises of the technological frontier in high precision laser welding in China.

The company brings together local and foreign experts and academic top talents, Has a number of technical talent, who has been long engaged in laser welding field and intelligent equipment’s design and development. Especially in laser source system, laser source power supply, laser source controller, laser optical system design, Digital motion’s control software field with rich experience in theory and practice.

HanWei products are widely used in various industry : Batteries manufacturing, automobile and auto parts manufacturing, electronic circuits and fiber optic communication device manufacturing, mobile phone, household appliances, Kitchen and bathroom hardware, precision instruments, instrumentation, jewel, medical devices, solar energy, optical industry, motor industry and others. The products has achieved high commendations and acknowledgments from users in various industry, have a good reputation and credibility.

HanWei Laser successfully developed a full range of laser welding products with international advanced level. Such as “Dual wavelength compound laser welding” solve the power battery’s aluminum alloy welding speed and penetration of trachoma’s compatibility, “Single lamp & single bar 600W laser source ” solve the low rate of good quality problem of power battery’s seal nails welding. And “MJ level super energy feed-back YAG welding machine” is specifically for below than 0.15mm thickness thin metal’s Ultra-high precision welding.
