Aluminum Alloy Laser Welding Diode Laser And Fiber Laser Hybrid
Metal Laser Welding Machine
Product Description:
Diode Laser.
The semiconductor laser spot welding process is thermal
conductivity welding, which is achieved by adjusting the laser
power and radiation time to melt the metal material. Due to the
uniform distribution of spot energy, a gradual decrease in laser
energy gradient can be achieved, thereby solving the problem of
porous porosity caused by the collapse of pseudo keyholes at the
end of spot welding seams.
Semiconductor lasers can form keyhole effects during continuous
welding and have strong penetration ability.
During continuous thermal conductivity welding, the welding process
is stable, the surface is smooth, the shape is beautiful, and the
weld section is semi circular, which can achieve the welding of
metal sheet structural components (butt welding, lap welding,
fillet welding, etc.), and the weld width can reach 3.5mm; During
continuous deep penetration welding, the welding process is stable,
free of spatter, and the weld cross-section is Y-shaped. The
strength after welding can meet the requirements for the use of the
workpiece.
Hybrid Diode and Fiber Laser Welding
Semiconductor lasers are combined with single-mode continuous fiber
lasers to achieve different weld cross-sections (semi circular,
V-shaped, U-shaped, Y-shaped) through different laser energy
ratios. They are widely used for sealing welding of new energy
power battery shells and packaging welding of filters.
Features:
1.Reduce welding defects, Improve welding efficiency.
2.Cover all of laser wave.
3.Has great advantages for welding middle-thick highly reflective
materials like aluminum and copper.
4.Special for welding cover of power battery.

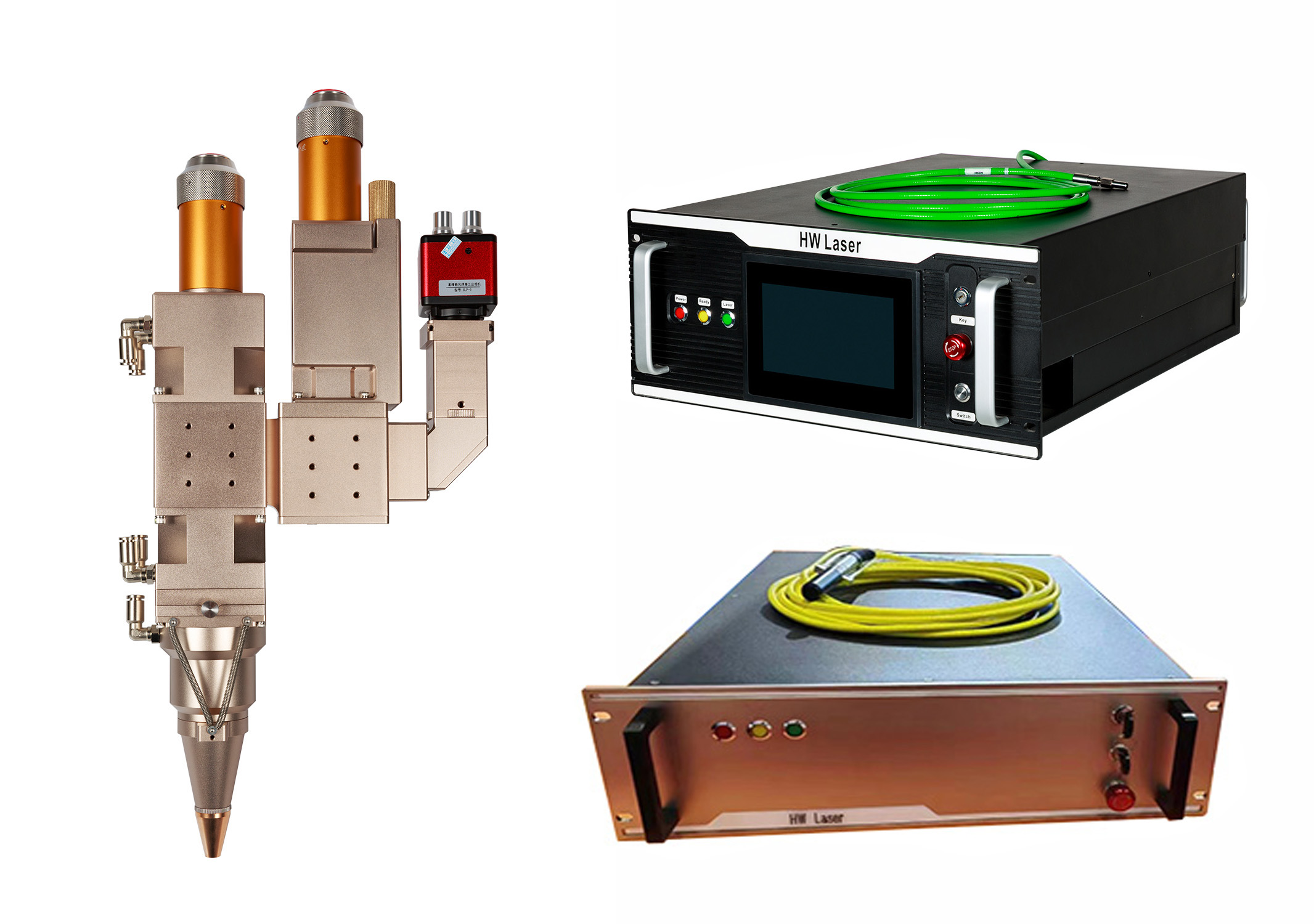

Diode laser (915nm) and fiber laser (1064nm) Hybrid-laser welding
can achieve diode laser source and fiber laser source coaxial
recombination. It is used in thick and highly reflective metal
welding (gold, silver, copper, aluminum). The reflective materials
have more highly absorptivity for diode-fiber hybrid laser make
less spark in welding process and achieve quality welding and nice
welding surface.
Widely used in cover of power battery seal welding, with good
quality and smooth welding surface to perfectly resolve battery
leakage of explosion point. Greatly improve welding efficiency.
Technical Parameters:
| Name | Parameter |
|---|
| Product Name | Diode and Fiber laser Hybrid Laser Welding Machine |
| Laser Source | Diode Laser Source and Fiber Laser Source. |
| Wavelength | 915nm+1064nm |
| Laser Power | 2000w - 4000w. |
| Laser Work Mode | CW / QCW / PWM / ARC Selection |
| Cooling System | Water Chiller Cooling. |
| Connection Port | QBH |
| Head Type | Y |
| Machine Weight | 350 Kg. |
| Safety Switch | Yes |
Applications:
Semiconductor lasers have been widely used in metal material
welding due to their excellent performance. Due to its large light
spot, uniform distribution of beam quality, and high absorption
rate of metal materials, it is suitable for welding thin metal
plates, such as household hardware, mechanical products, and
automotive components, due to its stable molten pool, no splashing,
and smooth and beautiful weld surface during the welding process.
The following is an introduction to the application of
semiconductor lasers in welding technology.
Support and Services:
HWTechnical Support and Service
We provide technical support and service to customers using our
Handheld Welding Head products. Our support staff is available to
answer any questions about the product, provide troubleshooting
advice, and help with product installation and maintenance. We also
offer extended warranties and replacement parts for our Handheld
Welding Head products.
- Troubleshooting and repair
- Software updates and upgrades
- Performance optimization and maintenance
- Replacement parts
- User training and education
If you have any questions or need assistance with our Handheld
Welding Head products, please contact us.
HanWei Laser already have been shipped and served lot's of over
customers in various countries all of the world. Have dealers and
agent in all of the world. Support on line remote technical support
in time and local agent technical support.
Packing and Shipping:
The Handheld Welding Head is packaged in a paper box ,wooden frame
or plywood, secured with packaging foam. The box is then labeled
with the product name, size, and shipping address. The product is
then shipped through a third-party shipping service.
HanWei Laser already have been shipped and served lot's of over
customers in various countries all of the world.
FAQ:
- Q: What is the Laser source brand of Diode laser and Fiber laser?
- A: The Laser sources brand name is HanWei.
- Q: Why Choose HanWei Hybrid laser welding machine?
- A: High efficiency, Deep penetration, Fast welding, Stable quality.
- Q: Where is the Place of Origin of the Metal Laser Welding Machine?
- A: Shenzhen, China.
- Q: What is the Certification of the Metal Laser Welding Machine?
- A: CE&FDA.
- Q: What is the Minimum Order Quantity of the Metal Laser Welding
Machine?
- A: The Minimum Order Quantity is 1.
