Product Description:

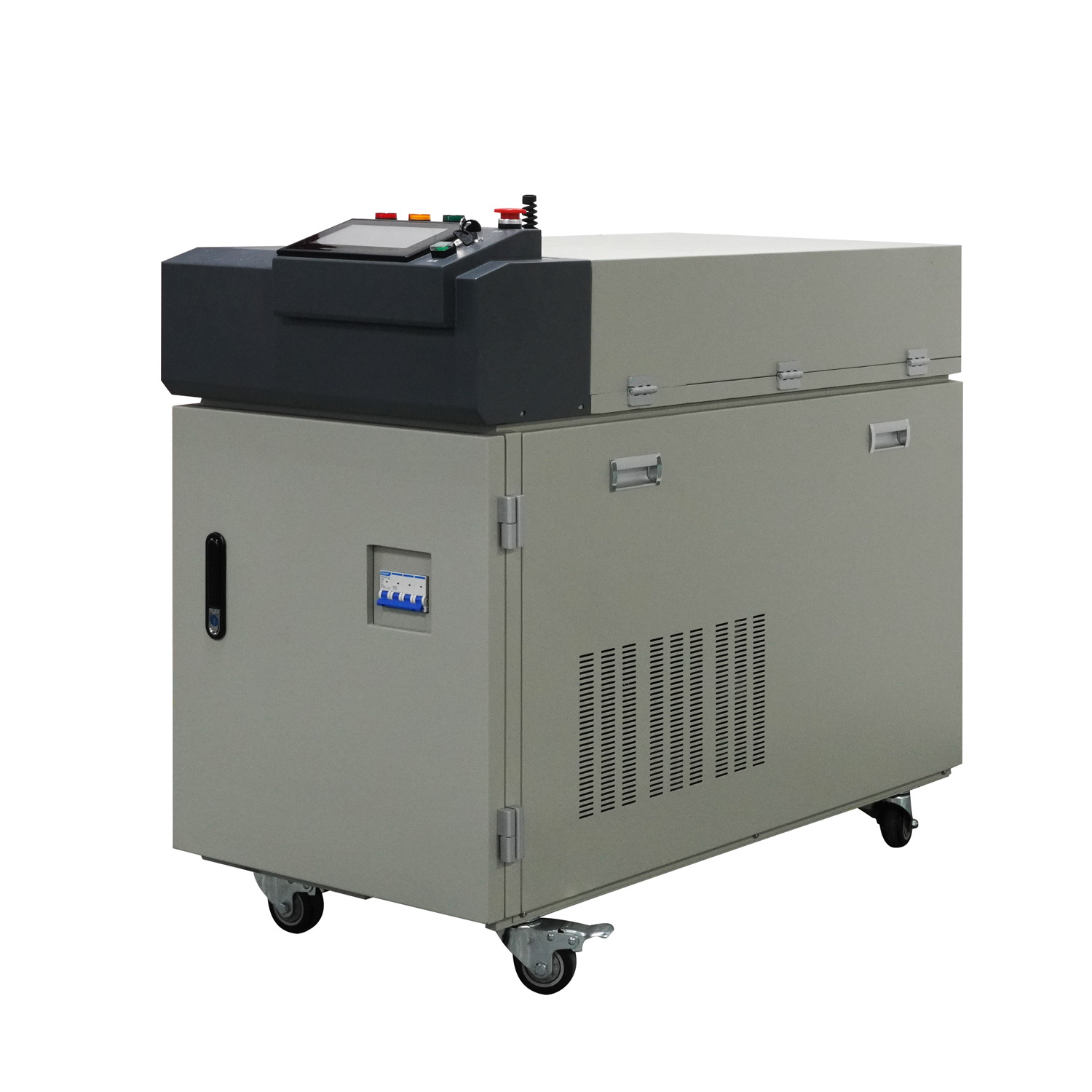

HanWei Aluminium Laser Welding Machine, model HW-YAG-500w, is the
perfect choice for reliable and efficient aluminium welding.
Utilizing a HanWei YAG Laser Handheld Head, the HW-YAG-500w is
capable of welding aluminium alloy at a YAG laser power of 500w,
providing a smooth welding surface. This product is ideal for
welding aluminium alloys and other metal components, making it an
ideal choice for a wide range of industries.
The HW-YAG-500w is designed to provide fast welding of aluminium
alloys, producing reliable and consistent results. With an easy to
use control panel and intuitive interface, this machine is easy to
use and operate. Additionally, its powerful laser handheld head
ensures that it is able to weld a wide range of materials with
ease.
The HW-YAG-500w provides a superior level of performance when it
comes to aluminium alloy welding. Its powerful laser head and
advanced technology make it a reliable and efficient machine for
welding aluminium alloys. This product is perfect for a variety of
industries, offering precision welding of aluminium alloys with
high efficiency and accuracy.
1.High aspect ratio.
2.Due to high power density and fast welding speed get smooth
welding result.
3.High density.
4.Strong weld seam.
5.Precise control.
6.Non contact, atmospheric environment welding.
7.Due to low average heat input and high machining accuracy,
reprocessing costs can be reduced. Meanwhile, laser welding has
lower operating costs, which can reduce workpiece costs
Fiber Laser Source Features and Advantages:
1. Good Laser Beam Quality.
2. High Efficiency.
3. Good heat dissipation characteristics.
4. Compact structure and high reliability.
Features:
The Featuree of the laser welding technology used for the sealing
nail of the power battery is to melt the material at the
electrolyte injection port through the thermal effect of the laser
beam and weld it with the sealing nail, thereby achieving sealing
protection. Compared with traditional welding methods, laser
welding machines have advantages such as speed, efficiency, high
accuracy, no pollution, and no material damage, and have gradually
become one of the mainstream technologies in the production process
of power batteries.
1. Adopt fiber conducted output, realize energy separate light,
time separate light.
2. Integrate independent R&D PID power feed-back technology,
realize keep same welding effective.
3. Unique optical design, import optical lens, high anti-injury
threshold value, light speed stable.
Technical Parameters:
| Attention | Technical Parameters |
|---|
| 1 | Aluminum alloy surfaces have a high reflectivity towards lasers,
requiring higher laser power during welding |
| 2 | The diameter of the laser spot is small, and the precision
requirements for welding fixtures are high |
| 3 | Low tolerance for part clearances, usually requiring part
clearances below 0.2mm. |
| 4 | Good and Stable Quality Cooling system. |
| Features | Specifications |
|---|
| Product Name | YAG Laser Metal Laser Welding Machine |
| Model | HW-Y-500 |
| Input Voltage | AC380v 50/60 Hz |
| Wavelength | 1064nm |
| Output Power | 500w |
| Max Pulse Energy | 70 J / 100 J .Option |
| Max Peak Power | 7 Kw / 10 Kw |
| Optical Route | 1 - 4 Optional |
| Net Weight | 240 Kg |
| Pulse Width | 15ms |
| Repeat Frequency | 100 Hz |
| Power Stability | +- 3 %. |
| Working Mode | Pulse |
| Cooling Method | Water Cooling |
| Equipment Power | 16 Kw |
| Optical Separate Type | Energy / Timing |
| Dimension | 1360*630*1120 mm |
Applications:
The technology of YAG pulse lasers in the field of laser welding is
very mature. Fiber output lasers have advantages such as good beam
quality, fine spot size, and flexible installation, providing
conditions for more precise welding. Suitable for welding optical
fiber connectors, microelectronic components, medical devices,
precision parts, etc
Laser welding can be applied to the welding of various metals,
alloys, steel and other alloy materials, as well as to the welding
of various dissimilar metals such as copper brass, copper titanium,
nickel copper, and copper titanium.
Automotive parts industry: engine cylinder gasket; Hydraulic tappet
sealing welding; Filter sealing welding; Spark plug welding;
Welding of valve push rod; Sealing welding of anti-collision airbag
electric detonator; Heat treatment of crankshaft or cylinder liner;
and so on
Electronics industry: Sealing welding of the shell of mobile phone
batteries and power batteries; Solid state relay sealing welding;
Welding of connector data cables; and so on
Hardware industry: tools, accessories, tableware, lighting
fixtures; and so on.
The product adopt fiber conducted output, multi-optical path
output, can be match different worktable. Unique optical system
design with import quartz optical lens, overseas coating
technology, high anti-injury threshold value, light speed stable,
matching with our independent R&D PID self-adaptation power
feed-back system power supply.
Optical communication, USB connector, 18650 phone battery cover,
battery tab-lead. Connector.Hardware, kitchen, jewelry, elevator
panel, household electrical appliances, corrugated pipe, battery,
Solar energy, Optical communication cover, aviation parts.
Support and Services:
We provide comprehensive technical support and service for our
Aluminium Laser Welding Machine. Our technical team is comprised of
professional engineers and technicians who are experienced in laser
welding. We will provide you with the necessary technical support
and service to ensure that your Aluminium Laser Welding Machine is
running properly and efficiently.
Our service team will provide you with timely response and
professional advice to help you optimize the performance of your
machine. We also offer a wide range of spare parts to ensure that
your Aluminium Laser Welding Machine is always running smoothly. In
addition, we offer regular maintenance services to keep your
machine in optimal condition and prevent any potential issues from
occurring.
We take pride in our customer service and strive to provide our
customers with the best technical support and service possible. If
you have any questions or require any assistance with your
Aluminium Laser Welding Machine, please do not hesitate to contact
us. We look forward to hearing from you soon.
Packing and Shipping:
Packaging and Shipping of Aluminium Laser Welding Machine
Aluminium Laser Welding Machine will be carefully packaged in an
appropriate container and shipped via a reliable carrier. A packing
list will be included in the shipment that contains the details of
the items shipped.
The container should be strong enough to protect the machine and
its components from external damage. The package should be marked
with the appropriate shipping label and include the contact
information of the sender.
The Aluminium Laser Welding Machine must be shipped with adequate
insurance coverage, which covers any possible damage to the machine
during transit.
FAQ:
- Q1: What is the brand of this Aluminium Laser Welding Machine?
- A1: The brand of this Aluminium Laser Welding Machine is HanWei.
- Q2: What is the model number of this Aluminium Laser Welding
Machine?
- A2: The model number of this Aluminium Laser Welding Machine is
HW-ALU.
- Q3: Where is this Aluminium Laser Welding Machine made?
- A3: This Aluminium Laser Welding Machine is made in Shenzhen,
China.
- Q4: What materials can this Aluminium Laser Welding Machine work
with?
- A4: This Aluminium Laser Welding Machine can work with aluminium
and other metals.
- Q5: How fast is the welding process of this Aluminium Laser Welding
Machine?
- A5: The welding process of this Aluminium Laser Welding Machine is
fast and efficient.
