    3000w Wobble Handheld Laser Welding Machine With Double Motor

    Ask Lasest Price
    Brand Name : HanWei
    Model Number : HW-ZJS-3000
    Certification : CE, FDA
    Price : Negotiation
    Payment Terms : T/T
    Supply Ability : 1200 Set per year
    Delivery Time : 5 work days
    • Product Details
    • Company Profile

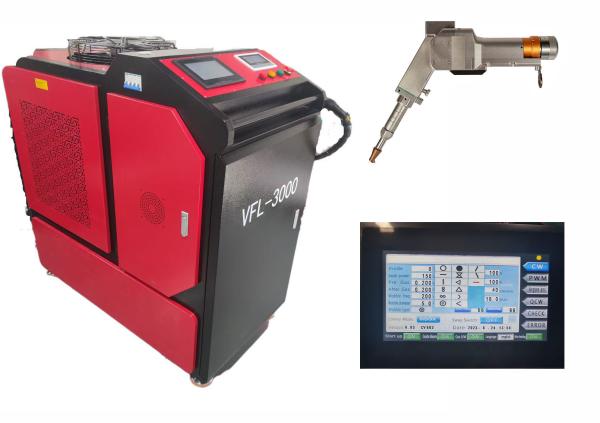

    3000w Wobble Handheld Laser Welding Machine With Double Motor

    3000w HW-ZJS-3000 Double Motor Wobble Handheld Laser Welding Machine Fast Welding

    Handheld Laser Welding Machine 3000w Description:

    The handheld laser welding equipment connects the laser head and the laser welding machine through a fiber optic cable, achieving long-distance laser transmission. When the customer operates the equipment, it is like operating an argon arc welding machine, which can achieve product spot welding, straight seam welding, overlap welding, circumferential welding, and welding of any trajectory. And welding wires can also be added. Handheld laser welding is also known as a handheld laser welding gun. The application principle of handheld laser welding machines is that due to the flexibility of laser welding machines, they are also suitable for welding stainless steel, gold, silver, copper, alloy, steel, diamond and other materials or welding different materials. They are widely used in industries such as mobile phone batteries, sensors, process gifts, clocks, electronic components, sensors, precision machinery, communication, etc.


    HanWei 3000w Handheld Laser Welding Machine adopt HW double motor wobble laser welding head. The handheld head have various laser beam shapes for selection to different welding requirements. The welding area can adjustable through laser beam diameter control 0.5-5mm size. The Laser output Mode also have different mode for selection such as CW, QCW, PWM, Argon.

    3000w laser can weld stainless steel up to 10mm and aluminum up to 5mm by high speed and high efficiency.


    The 3000w Handheld laser welding machine HW-ZJS-3000 is a machine really worth owning :

    1. Modern but compact size Machine. Save space in user factory.

    2. The small size machine with wheels, its easy to move to the place where needed welding machine.

    3. Handheld Welding gun weight is 0.7kg only, mini size, comfort to hold.

    4. Advanced control system : Touch screen parameter setting digital control system.

    5. Long cable length from machine body to handheld gun. 10m, 20m, 30m... customized. Usually use 10m/20m cable length.

    6. Large and Adjustable welding beam size : 0.5 - 5mm.

    7. Laser Beam Shapes have various type. According to welding requirements select.


    The Handheld Laser Welding Head double motor wobble type with laser welding range adjustment, light weight, various laser beam shape , more depth of fusion advantages to adapt to use in different scenes.
    HanWei Laser Independent develop the full set and put on the market. Products with ergonomic concept and design, think through the welding technology applicability and comfort for long-term use (Weight 0.7 kg). The Laser Head and control system adopt the safety lock: Output the laser only when the nozzle touch the workpiece to prevent harming others. Adopt drawer type of protection lens setting for convenience of users themselves for a replacement.

    Handheld laser welding machine Features and Advantages:
    *Extremely Light in weight and small volume,adopt streamline ergonomic design make holding operation is comfortable.
    *The control system is very easy and requires little prior knowledge on the part of the operator.
    *With safety lock function to ensure safety process.
    *Internal structure of welding head with extremely simple design, easy to operate and maintenance.
    *Adjustable Laser beam range: 0.5 - 5 mm.
    *Support standard single route wire feeding.
    *Support Dual route wire same time feeding, welding bead up to 12mm. And also can switch any one route to use as single route wire feeding.
    *Laser beam scan mode: Various shape.
    *Supply Four welding modes (CW – Continue, Adjust laser out frequency, Argon weld type, QCW mode peak power output).
    *Independent Research and Develop all products:Laser head, Control system, Wire Feeding device. Safety lock.
    *Digital setting parameters in welding machine interface.
    *Support different languages.
    *All performance features can be customized to meet individual customer requirements.
    Handheld Laser Welding Machine Specification:
    ModelHW-ZJS-3000
    Laser SourceFiber Laser Source
    Laser Power3000W
    Water ChillerIntegrated Inside Machine
    Control SystemHanWei Touch Screen Digital Parameter Setting Control System
    Handheld Welding HeadDouble Motor Wobble Head
    Handheld Head Weight0.7Kg
    Handheld Head Size21.6*28.7cm
    Handheld Head Cable Length10m
    Laser Beam Size0.5 - 5 mm Adjustable
    Laser Beam ShapeVarious Kind of Beam Shape
    Laser Output ModeCW. QCW. PWM. Argon.
    Welding MaterialsSus, Aluminum.
    Wire FeedingSupport
    Machine Size1600mm*850mm*1400mm
    Machine Weight250Kg
    Standard single route wire feeding device packing Info17Kg. 70*40*65cm.

    Handheld Laser Welding Machine Product Show:


    Laser Welding Head. Extremely Light in weight and small volume,adopt streamline ergonomic design make holding operation is comfortable.


    Control System : Torch monitor. The control system is very easy and requires little prior knowledge on the part of the operator.



    Standard single route wire feeding device


    Dual route wire feeding device. Support Dual route wire same time feeding, welding bead up to 12mm. And also can switch any one route to use as single route wire feeding.


    Paper Box Packing


    Welding Sample Show


    Internal Structure of Welding head. Internal structure of welding head with extremely simple design, easy to operate and maintenance.


    Nozzle


    Lens and Mirrors : Protective lens, Focus lens, Motor lens, Collimating lens.
