    3 In 1 Industrial Handheld Laser Welding Machine Multifunctional

    Ask Lasest Price
    Brand Name : HanWei
    Model Number : HW-DZJS-1500
    Certification : CE, FDA
    Price : Negotiation
    Payment Terms : T/T
    Supply Ability : 1200 Set per year
    Delivery Time : 5 work days
    • Product Details
    • Company Profile

    3 In 1 Industrial Handheld Laser Welding Machine Multifunctional

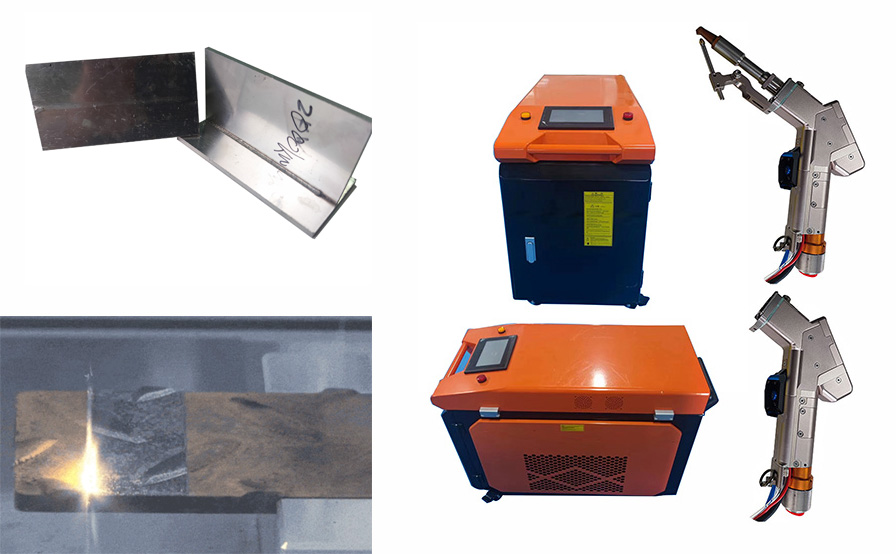

    1500w Three-In-One Handheld Laser Welding Machine Portable Laser Gun Light Weight Multifunctional

    Three-In-One Handheld Laser Welding Machine 1500w Description:

    Three-In-One Function : Laser Welding + Laser Cleaning + Laser Cutting.


    HanWei 1500w Three-In-One Handheld Laser Machine adopt high quality and famous brand laser source, integrated water chiller inside of machine.

    The machine with HW single motor wobble laser welding,cleaning,cutting head.

    The single motor welding gun working area can adjustable through laser beam diameter control 0.5-5mm size for welding, 0.5-50mm size for cleaning. The Laser output Mode also have different mode for selection such as CW, QCW, PWM, Argon.

    1500w laser can weld stainless steel up to 4mm and aluminum up to 3mm by high speed and high efficiency.


    The 1500w Three-In-One Handheld laser machine HW-DZJS-1500 is a machine really worth owning :

    1. Small size Machine. Save space in user factory.

    2. The small size machine with wheels, its easy to move to the place where needed welding machine.

    3. Handheld Welding gun weight is 0.7kg only, mini size, comfort to hold.

    4. Advanced control system : Touch screen parameter setting digital control system.

    5. Long cable length from machine body to handheld gun. 10m, 20m, 30m... customized. Usually use 10m/20m cable length.

    6. Large and Adjustable welding beam size : 0.5 - 5mm.

    7. High precision cleaning area : 0.5-50 mm Adjustable.

    8. Easy to switch the cutting mode.


    1.Laser Welding Function :

    The Three-In-One Handheld Laser Head welding function is same as special handheld laser welding head. Just in the control system have one more function for switching Laser Cleaning mode.


    2.Switching cleaning mode from welding mode just need to click CLEANING button in touch screen monitor. Then tore down the front welding part of handheld welding head, After that replace the special focus lens.


    3.Switching cutting mode from welding mode, just need to replace a special cutting nozzle.

    All of switching process in Three-In-One Handheld laser head is simple and easy to operate.



    Three-In-One Handheld laser machine Features and Advantages:

    *Extremely Light in weight and small volume,adopt streamline ergonomic design make holding operation is comfortable.
    *The control system is very easy and requires little prior knowledge on the part of the operator.
    *With safety lock function to ensure safety process.
    *Internal structure of welding head with extremely simple design, easy to operate and maintenance.
    *Adjustable Laser beam range: 0.5 - 5 mm welding. / 0.5 - 50 mm cleaning.
    *Support standard single route wire feeding.
    *Support Dual route wire same time feeding, welding bead up to 12mm. And also can switch any one route to use as single route wire feeding.
    *Laser beam scan mode: Line"-".
    *Supply Four welding modes (CW – Continue, Adjust laser out frequency, Argon weld type, QCW mode peak power output).
    *Independent Research and Develop all products:Laser head, Control system, Wire Feeding device. Safety lock.
    *Digital setting parameters in welding machine interface.
    *Support different languages.
    *All performance features can be customized to meet individual customer requirements.
    Handheld Laser Welding Machine Specification:
    ModelHW-DZJS-1500
    Laser SourceFiber Laser Source
    Laser Power1500W
    Water ChillerIntegrated Inside Machine
    Control SystemHanWei Touch Screen Digital Parameter Setting Control System
    Handheld Welding HeadSingle Motor Wobble Head
    Handheld Head Weight0.7Kg
    Handheld Head Size21.6*28.7cm
    Handheld Head Cable Length10m
    Laser Beam Size0.5 - 5 mm welding / 0.5 - 50 mm cleaing Adjustable
    Laser Beam ShapeLine"-"
    Laser Output ModeCW. QCW. PWM. Argon.
    Welding MaterialsSus, Aluminum.
    Wire FeedingSupport
    Machine Size100cm*42cm*69cm
    Machine Weight70Kg
    Standard single route wire feeding device packing Info17Kg. 70*40*65cm.

    Handheld Laser Welding Machine Product Show:


    Handheld Laser Head. Extremely Light in weight and small volume,adopt streamline ergonomic design make holding operation is comfortable.


    Control System : Torch monitor. The control system is very easy and requires little prior knowledge on the part of the operator.


    Standard single route wire feeding device


    Dual route wire feeding device. Support Dual route wire same time feeding, welding bead up to 12mm. And also can switch any one route to use as single route wire feeding.


    Paper Box Packing


    Welding Sample Show


    Internal Structure of Welding head. Internal structure of welding head with extremely simple design, easy to operate and maintenance.


    Nozzle


    Lens and Mirrors : Protective lens, Focus lens, Motor lens, Collimating lens.


    Handheld Welding Head Customization:

    Customized Handheld Welding Head by HanWei

    The HanWei HW-20-60150 is a handheld laser welding head with high accuracy and advanced techonology. It is designed to provide a reliable and efficient welding solution for a variety of industrial applications.

    • Model Number: HW-20-60150
    • Place of Origin: Shenzhen, China
    • Laser Welding Area: 0.5~5mm Adjustable
    • Cooling Method: Water Cooling
    • Laser Source: Fiber Laser Source
    • Laser Power: Up To 3000w
    • Cable Length: Customized

    This handheld laser gun is suitable for welding wire and can be used with a water-cooled welding head for maximum efficiency. It offers superior performance and accuracy and is ideal for a variety of industrial applications.

    Handheld Welding Head Support and Services:

    We provide technical support and service for Handheld Welding Head.

    We offer a range of services to keep your Handheld Welding Head running optimally, including:

    • Troubleshooting and repair
    • Software updates and upgrades
    • Performance optimization and maintenance
    • Replacement parts
    • User training and education

    If you have any questions about our technical support and service for Handheld Welding Head, please contact us.

    Handheld Welding Head Packing and Shipping:

    Packaging and Shipping of Handheld Welding Head:

    The Handheld Welding Head will be securely packaged with sufficient cushioning material to ensure that it does not incur any damage during transportation. The packaging is made of durable and eco-friendly materials that can withstand the harsh conditions of shipping. The product will be shipped using a reliable and insured shipping service such as FedEx, UPS, or DHL to ensure that it reaches the customer safely.

    FAQ:

    Q: Three-In-One Handheld Laser Head Function?
    A: Laser Welding, Laser Cleaning, Laser Cutting.
    Q: How To Switch Modes Between Different Working Modes ?
    A: From Welding to Cleaning only need to click the button in touch screen and tore down welding part in front of welding head. From Welding to Cutting only need to replace nozzle.
    Q: What aspects do operators need to pay attention to ?
    A: Pay attention to the surrounding environment no dust, no oil. Prepare clean tools. Make Laser Beam In Center after switch work mode.
    Q: What is the difference in cleaning mode between Three-In-One Handheld Laser Head and Special Handheld Laser Cleaning Head ?
    A: Cleaning area in Three-In-One Head is 50mm maximum. But Cleaning area in Special Cleaning Head is 300mm maximum.
