    2000w Small Size Handheld Metal Welding Machine With Double Motor

    Ask Lasest Price
    Brand Name : HanWei
    Model Number : HW-ZJS-2000
    Certification : CE, FDA
    Price : Negotiation
    Payment Terms : T/T
    Supply Ability : 1200 Set per year
    Delivery Time : 5 work days
    • Product Details
    • Company Profile

    2000w Small Size Handheld Metal Welding Machine With Double Motor

    Portable Fiber Laser Welding Machine HW-ZJS-2000 2000w Small Size Double Motor Wobble Laser Fast Welding

    Handheld Laser Welding Machine Description:

    Laser welding is the use of high-energy laser pulses to locally heat a material in a small area. The energy radiated by the laser is directed through heat transfer to the internal diffusion of the material, melting the material and forming a specific molten pool. It is a new type of welding method mainly aimed at the welding of thin-walled materials and precision parts, which can achieve spot welding, butt welding, overlap welding, sealing welding, etc. It has a high aspect ratio, small weld width, small heat affected zone, small deformation, fast welding speed, smooth and beautiful weld seams, no need for treatment or simple treatment after welding, high weld quality, no air holes, precise control, small focus point, high positioning accuracy, and easy automation.


    Handheld welding is mainly aimed at laser welding of long-distance and large workpieces, overcoming the limitations of workbench travel space. During welding, the heat affected area is small, which will not cause deformation, blackening, or traces on the back. Moreover, the welding depth is large, the welding is firm, and the melting is sufficient. It can not only achieve thermal conductivity welding, but also continuous deep penetration welding, spot welding, butt welding, overlap welding, sealing welding, seam welding, etc.


    HanWei 2000w handheld laser welding machine adopt high quality and famous brand laser source, water chiller. The Handheld laser welding gun use Hanwei independent developed double motor wobble laser welding head.



    The HW Fiber Laser Welding Head Handheld double motor wobble type is exclusively designed and manufactured by HanWei Laser.

    The Handheld Laser Welding Head double motor wobble type with laser welding range adjustment, light weight, various laser beam shape , more depth of fusion advantages to adapt to use in different scenes.
    HanWei Laser Independent develop the full set and put on the market. Products with ergonomic concept and design, think through the welding technology applicability and comfort for long-term use (Weight 0.7 kg). The Laser Head and control system adopt the safety lock: Output the laser only when the nozzle touch the workpiece to prevent harming others. Adopt drawer type of protection lens setting for convenience of users themselves for a replacement.

    Handheld Laser Welding Machine Features and Advantages:
    *Extremely Light in weight and small volume,adopt streamline ergonomic design make holding operation is comfortable.
    *The control system is very easy and requires little prior knowledge on the part of the operator.
    *With safety lock function to ensure safety process.
    *Internal structure of welding head with extremely simple design, easy to operate and maintenance.
    *Adjustable Laser beam range: 0.5 - 5 mm.
    *Support standard single route wire feeding.
    *Support Dual route wire same time feeding, welding bead up to 12mm. And also can switch any one route to use as single route wire feeding.
    *Laser beam scan mode: Various shape.
    *Supply Four welding modes (CW – Continue, Adjust laser out frequency, Argon weld type, QCW mode peak power output).
    *Independent Research and Develop all products:Laser head, Control system, Wire Feeding device. Safety lock.
    *Digital setting parameters in welding machine interface.
    *Support different languages.
    *All performance features can be customized to meet individual customer requirements.
    Handheld Laser Welding Machine Specification:
    ModelHW-ZJS-2000
    Laser SourceFiber Laser Source
    Laser Power2000W
    Water ChillerIntegrated Inside Machine
    Control SystemHanWei Touch Screen Digital Parameter Setting Control System
    Handheld Welding HeadDouble Motor Wobble Head
    Handheld Head Weight0.7Kg
    Handheld Head Size21.6*28.7cm
    Handheld Head Cable Length10m
    Laser Beam Size0.5 - 5 mm Adjustable
    Laser Beam Shape6 Kind of Beam Shape
    Laser Output ModeCW. QCW. PWM. Argon.
    Welding MaterialsSus, Aluminum.
    Wire FeedingSupport
    Machine Size100cm*42cm*69cm
    Machine Weight70Kg
    Standard single route wire feeding device packing Info17Kg. 70*40*65cm.

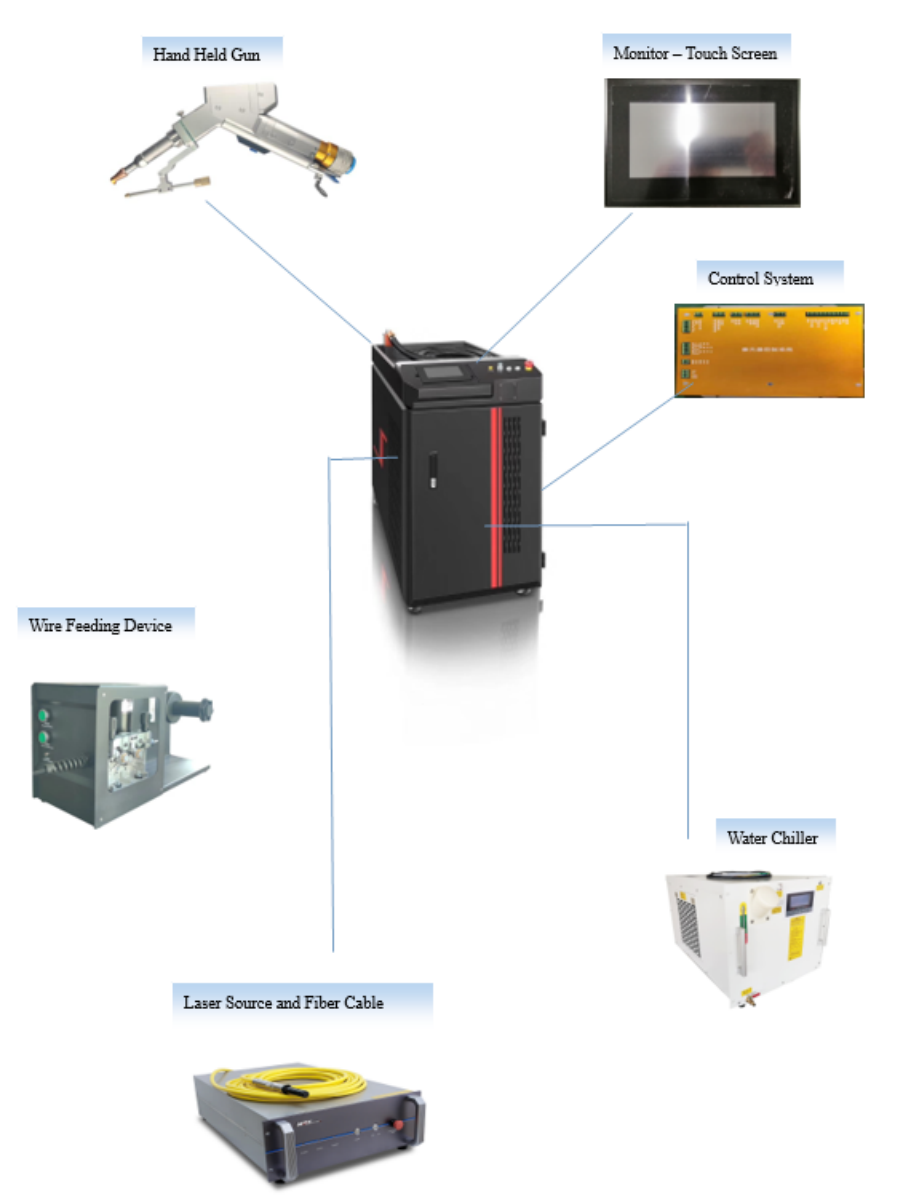

    Handheld Laser Welding Machine Product Show:


    Laser Welding Head. Extremely Light in weight and small volume,adopt streamline ergonomic design make holding operation is comfortable.


    Control System : Torch monitor. The control system is very easy and requires little prior knowledge on the part of the operator.



    Standard single route wire feeding device


    Dual route wire feeding device. Support Dual route wire same time feeding, welding bead up to 12mm. And also can switch any one route to use as single route wire feeding.


    Paper Box Packing


    Welding Sample Show


    Internal Structure of Welding head. Internal structure of welding head with extremely simple design, easy to operate and maintenance.


    Nozzle


    Lens and Mirrors : Protective lens, Focus lens, Motor lens, Collimating lens.
