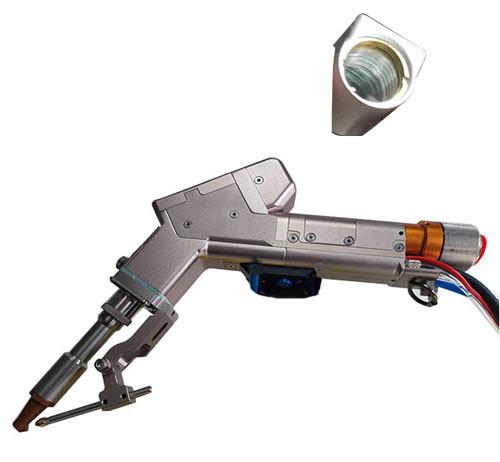

    Quartz Material Laser Collimating Lens 1064nm Wavelength For Laser Welding Head

    Ask Lasest Price
    Brand Name : HanWei
    Model Number : Laser Welding Head Collimating Focus Lens
    Certification : CE, FDA
    Price : Negotiation
    Payment Terms : T/T
    Supply Ability : 60000 Set per year
    Delivery Time : 3 work days
    • Product Details
    • Company Profile

    Quartz Material Laser Collimating Lens 1064nm Wavelength For Laser Welding Head

    Collimating Lens Laser Focus In Handheld Laser Head of Laser Welding Machine QBH

    Handheld Welding Head Collimating Focus Lens Description:

    Laser Collimating focus lens principle :

    When a laser passes through a lens, the lens refracts the light. If the lens is convex, the light will be collimated towards the center of the lens, which means that after passing through the lens, the light will become as parallel as possible. This principle is related to the shape, curvature, refractive index, etc. of the lens. Collimating lenses typically use convex lenses to focus the laser beam using its focusing effect, minimizing its diameter and approximating it as a parallel beam. This can enhance the penetration ability and beam shape of the laser, making it convenient for applications such as laser measurement and laser processing.


    Laser focusing mirror is an optical element that can compress divergent laser in the angular direction. Due to the large emission surface of the fiber, it is a diffuse beam rather than a collimated or focused spot. Fiber laser focusing mirror can effectively converge the light beams at the end of the fiber and control the output beam in a very small area. According to the requirements of different applications, two or more focusing lenses can be used, and this optical element is called a composite focusing lens. Sometimes, an aspheric focusing lens is also used. From the perspective of usage effect, the aspheric lens has the best effect, followed by a composite focusing lens


    The Fiber Laser Welding Head Handheld type is exclusively designed and manufactured by HanWei Laser.

    HanWei Laser provides not only Laser Welding Head and Control System, and also provides all kinds of consumable parts for maintenance. There are all kinds of consumable parts always keep in stock for providing full service and quick service to all of Hanwei customers.

    In order to improve utilization and reduce production costs, it can be reused by regularly cleaning the Collimating mirror. The Collimating is setted in a drawer case, easy to save and replace.

    HanWei Laser use high quality Collimating mirror in Laser Welding Head, and also provides to customer high quality collimating mirror which material consists good quality quartz.


    Handheld Welding Head Collimating Focus Lens Specification:
    ModelHandheld Welding Head Focus Lens
    Usable Laser Power1000W-3000W
    Focal lens150
    Collimate focus60
    Interface typeQBH
    Accessible wave range1064nm
    Usable laser sourceMost of laser source

    Handheld Welding Head Protective Lens Features and Advantages:
    *Fiber Laser Welding Head adopt good quality lens and windows.
    *FIber Laer Welding Head protective lens / protective window / mirror consists high quality quartz.
    *High effecient prevention of dust enrty.
    *Regularly inspect and replace lens inside of Laser Welding Head.
    *Easy to replace lens, window, mirror inside of Laser Welding Head.

    Handheld Welding Head Collimating Focus Lens Product Show:



    Internal Structure of Welding head. Internal structure of welding head with extremely simple design, easy to operate and maintenance.


    Support and Services:


    Handheld Welding Head Technical Support and Service

    We provide technical support and service to customers using our Handheld Welding Head products. Our support staff is available to answer any questions about the product, provide troubleshooting advice, and help with product installation and maintenance. We also offer extended warranties and replacement parts for our Handheld Welding Head products.

    If you have any questions or need assistance with our Handheld Welding Head products, please contact us.


    HanWei Laser already have been shipped and served lot's of over customers in various countries all of the world. Have dealers and agent in all of the world. Support on line remote technical support in time and local agent technical support.


    Packing and Shipping:


    Packaging and Shipping

    The Handheld Welding Head is packaged in a paper box ,wooden frame or plywood, secured with packaging foam. The box is then labeled with the product name, size, and shipping address. The product is then shipped through a third-party shipping service.

    HanWei Laser already have been shipped and served lot's of over customers in various countries all of the world.
