Integrated Handheld Welding Head For Cleaning Cutting Multifunctional

Shenzhen Hanwei Laser Equipment Co., Ltd.
Trust Seal
Verified Supplier
Credit Check
Supplier Assessment
Contact Now
    Buy cheap Integrated Handheld Welding Head For Cleaning Cutting Multifunctional from wholesalers

    Buy cheap Integrated Handheld Welding Head For Cleaning Cutting Multifunctional from wholesalers
    • Buy cheap Integrated Handheld Welding Head For Cleaning Cutting Multifunctional from wholesalers
    • Buy cheap Integrated Handheld Welding Head For Cleaning Cutting Multifunctional from wholesalers
    • Buy cheap Integrated Handheld Welding Head For Cleaning Cutting Multifunctional from wholesalers

    Integrated Handheld Welding Head For Cleaning Cutting Multifunctional

    Ask Lasest Price
    Brand Name : HanWei
    Model Number : HW-20-60150
    Certification : CE, FDA
    Price : Negotiation
    Payment Terms : T/T
    Supply Ability : 6000 Set per year
    Delivery Time : 5 work days
    • Product Details
    • Company Profile

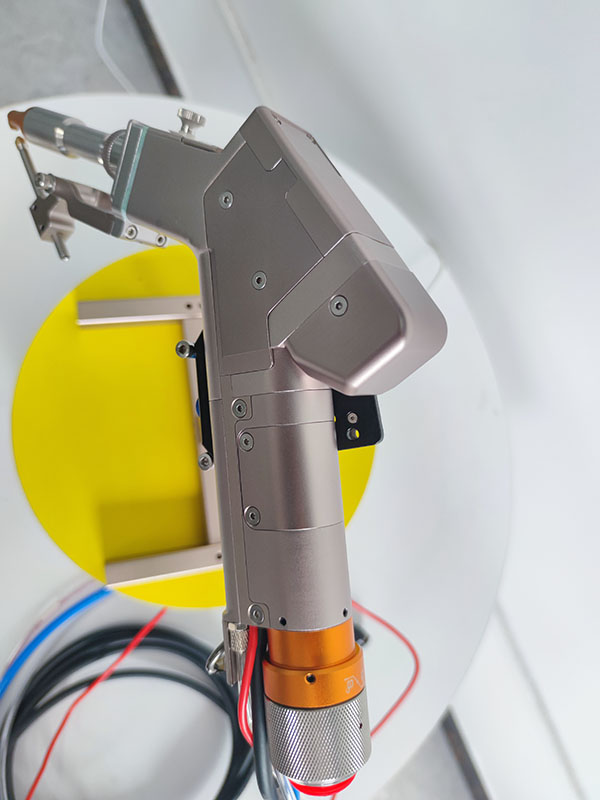

    Integrated Handheld Welding Head For Cleaning Cutting Multifunctional

    Three-In-One Handheld Laser Welding Cleaning Cutting Integrated Portable Head

    Handheld Welding Head Description:

    The three-in-one handheld laser welding head in Handheld laser welding machine is widely used in metal working industry because of in one small size machine unit integrated laser welding, laser cleaning, laser cutting functions. And switching method is very easy between these modes. Most of all the structure is very simple and easy to maintenance from the handheld welding head part, laser control system part, chiller unit to laser source unit, It is a really high efficient laser machine.

    Handheld Welding Head Function In Three-In-One Laser Gun:

    1.The Three-In-One Handheld Laser Head welding function is same as special handheld laser welding head. Just in the control system have one more function for switching Laser Cleaning mode.

    2.Switching cleaning mode from welding mode just need to click CLEANING button in touch screen monitor. Then tore down the front welding part of handheld welding head, After that replace the special focus lens.

    3.Switching cutting mode from welding mode, just need to replace a special cutting nozzle.

    All of switching process in Three-In-One Handheld laser head is simple and easy to operate.


    The company HanWei Laser Equipment Co.,Ltd is one of the only a few supplier around the world, who can research and develop,manufacturing the whole set of handheld laser welding machine : Handheld welding head → Laser control system → Wobble control system → Wire Feeding device→ Laser Source.

    The three-in-one handheld laser welding gun structure is simple and advanced,easy to operate and maintenance.The control system design is user-friendly, set laser welding parameter in touch screen monitor, can save 31 kinds of welding parameter for various material and thickness.

    Handheld Welding Head Specifications:

    ParameterDetails
    Product NameThree-In-One Handheld Laser Welding Head
    Laser SourceFiber Laser Source
    Laser Power2000w maximum
    Cooling MethodWater Cooling
    Wobble Laser ShapeLine
    Laser beam size0.5-5mm Adjustable
    Wire FeedingSupport
    Head Weight0.7Kg
    Cable LengthCustomized
    Control SystemTouch monitor parameter setting

    Handheld Welding HeadFeatures:

    1.Multi functions integrated in one unit.

    2.Laser Welding 0.5-5mm.

    3.Laser Cleaning 0.5-50mm.

    4.Laser Cutting Handheld cutting type.

    5.Easy to swith between different work mode.

    6.Easy to replace lens.

    7.Easy to replace nozzles.

    8.Easy to set parameters.


    Handheld Welding Head Advantages:

    1. Portability.

    2. Ease of Use.

    3. Versatility.

    4. Precision and Quality.

    5. Increased Efficiency.

    Handheld Welding Head Applications:

    1.Metal Cleaning Industry.
    2.Rust removal.
    3.Derusting.
    4.Environment protection metal cleaning field.
    5.Painting removal.
    6.Sheet metal welding industry.
    7.Metal Pipe welding.
    8.Hardwares, Doors, Windows, Furnitures and Kitchenwares Industry.
    9.Electrical equipment industry.

    Handheld Welding Head Product Show:




    Standard single route wire feeding device


    Dual route wire feeding device. Support Dual route wire same time feeding, welding bead up to 12mm. And also can switch any one route to use as single route wire feeding.


    Paper Box Packing
