Moderate Cost Industrial Laser Joining Machine with High Safety
Laser Welding 3000w Laser Power
Product Description:
HanWei 3000w Handheld Laser Welding Machine adopt HW single motor
wobble laser welding head. The handheld head have a laser beam
shapes Line"-" but can adjust the line wobble speed for selection
to different welding requirements. The welding area can adjustable
through laser beam diameter control 0.5-5mm size. The Laser output
Mode also have different mode for selection such as CW, QCW, PWM,
Argon.
1.Good production efficiency: The handheld laser welding machine
has simple operation, fast speed, deep penetration, small welding
deformation, and high welding yield for different materials. 3-5
times faster than traditional welding speed, greatly reducing time
consumption and labor costs.
2.High safety guarantee: The handheld laser welding machine is
green and environmentally friendly, and the ultraviolet radiation
generated by argon arc welding is about 5-30 times that of ordinary
electrode arc welding. Our company's laser welding comes with a
laser safety interlock function to ensure the safe use of
operators.
3.Convenient welding: Handheld laser welding machine has good
results, firm welding, and smooth and beautiful welds.
4.Flexible and convenient operation: Handheld welding head is
lightweight, flexible, and easy to operate, suitable for welding
from various angles and shapes. It is easy to use and can be used
after 30 minutes of training for a single product.
5.Small size: integrated industrial design, flexible and
lightweight, achieving indoor and outdoor long-distance welding.
Features:
*Extremely Light in weight and small volume,adopt streamline
ergonomic design make holding operation is comfortable.
*The control system is very easy and requires little prior
knowledge on the part of the operator.
*With safety lock function to ensure safety process.
*Internal structure of welding head with extremely simple design,
easy to operate and maintenance.
*Adjustable Laser beam range: 0.5 - 5 mm.
*Support standard single route wire feeding.
*Support Dual route wire same time feeding, welding bead up to
12mm. And also can switch any one route to use as single route wire
feeding.
*Laser beam scan mode: Line "-".
*Supply Four welding modes (CW – Continue, Adjust laser out
frequency, Argon weld type, QCW mode peak power output).
*Independent Research and Develop all products:Laser head, Control
system, Wire Feeding device. Safety lock.
*Digital setting parameters in welding machine interface.
*Support different languages.
*All performance features can be customized to meet individual
customer requirements.
Technical Parameters:
| Attribute | Value |
|---|
| Model | HW-DZJS-3000 |
| Laser Source | Fiber Laser Source |
| Laser Power | 3000W |

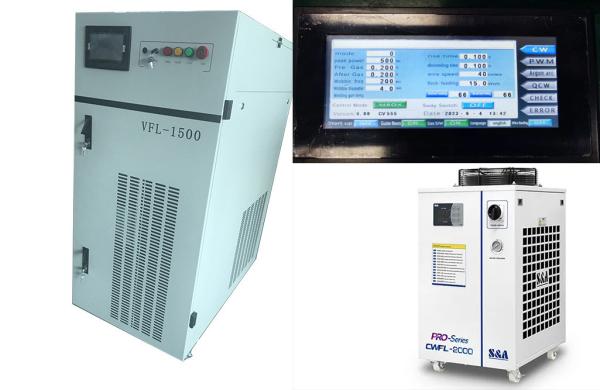

| Water Chiller | Integrated Inside Machine |
| Control System | HanWei Touch Screen Digital Parameter Setting Control System |
| Handheld Welding Head | Single Motor Wobble Head |
| Handheld Head Weight | 0.7Kg |
| Handheld Head Size | 21.6*28.7cm |
| Handheld Head Cable Length | 10m |
| Laser Beam Size | 0.5 - 5 mm welding / 0.5 - 50 mm cleaing Adjustable |
| Laser Beam Shape | Line"-" |
| Laser Output Mode | CW. QCW. PWM. Argon. |
| Welding Materials | Sus, Aluminum. |
| Wire Feeding | Support |
| Machine Size | 100cm*42cm*69cm |
| Machine Weight | 70 Kg |
| Standard single route wire feeding device packing Info | 17Kg. 70*40*65cm. |
Applications:
HanWei HW-DZJS-3000 Laser Welding Machine is a high-performance and
reliable welding machine that is suitable for a variety of
applications. It is a fiber laser welding machine with a accuracy
focal spot diameter but achieve large welding bead, high safety
protection, and the operating environment is 5-45 degree
temperature.
This machine is certified by CE&FDA and has a minimum order
quantity of 1. It is manufactured in Shenzhen,China, and offers
fast delivery in 10-30 working days after payment. The price is
negotiable, support dealer. The packaging by Plywood. The minimum
supply ability is 2400 sets per year.
HanWei HW-DZJS-2000 Fiber Laser Handhle Metal Welding Machine is
perfect for applications such as steel sheet and tube, stainless
steel sheet metal and tube, galvanized steel, and aluminum laser
welding, as it provides a reliable and precise welding seam with
perfect performance. The welding machine is easy to operate and
offers high production efficiency. It is a reliable choice for
industries such as hardware, furniture, kitchenware, door and
windows, automotive, electronic equipment, medical equipment, and
more.
Customization:
Industrial Laser Welding Machine
Brand Name: HanWei
Model Number: HW-I
Place of Origin: Shenzhen.China
Automation: High
Type: Industrial Laser Welding Machine
Noise Level: Low
Welding Speed: Fast
Durability: High
Industrial Laser Welding Equipment, 18650 Battery Laser Welding,
Industrial Laser Soldering Machine
Support and Services:
HWTechnical Support and Service
We provide technical support and service to customers using our
Handheld Welding Head products. Our support staff is available to
answer any questions about the product, provide troubleshooting
advice, and help with product installation and maintenance. We also
offer extended warranties and replacement parts for our Handheld
Welding Head products.
- Troubleshooting and repair
- Software updates and upgrades
- Performance optimization and maintenance
- Replacement parts
- User training and education
If you have any questions or need assistance with our Handheld
Welding Head products, please contact us.
HanWei Laser already have been shipped and served lot's of over
customers in various countries all of the world. Have dealers and
agent in all of the world. Support on line remote technical support
in time and local agent technical support.
Packing and Shipping:
Packaging and Shipping
The Welding Head is packaged in a paper box ,wooden frame or
plywood, secured with packaging foam. The box is then labeled with
the product name, size, and shipping address. The product is then
shipped through a third-party shipping service.
HanWei Laser already have been shipped and served lot's of over
customers in various countries all of the world.
FAQ:
Industrial Laser Welding Machine
Brand Name: HanWei
Model Number: HW-I
Place of Origin: Shenzhen.China
Q & A
Q1: What is the operation principle of Industrial Laser Welding
Machine?
A1: Industrial Laser Welding Machine uses a laser beam to heat the
surface of the workpiece to be welded and melts the two surfaces to
be welded. The laser beam is generated by a laser source and
focused into a small spot on the workpiece to be welded, and the
welding is completed by controlling the movement of the spot.
Q2: What are the advantages of Industrial Laser Welding Machine?
A2: Industrial Laser Welding Machine features high welding speed, less
deformation, narrow heat affected zone, high welding quality and
good welding efficiency.
Q3: What is the application range of Industrial Laser Welding Machine?
A3: Industrial Laser Welding Machine is mainly used for welding of
metals such as stainless steel, carbon steel, aluminum, copper and
alloy.
Q4: What are the safety operations of Industrial Laser Welding
Machine?
A4: Industrial Laser Welding Machine should be in accordance with the
safety regulations of laser welding equipment. Operators should
wear protective equipment such as protective glasses and protective
clothing; pay attention to the operation environment, keep away
from flammable and combustible materials and observe the
environmental temperature.
Q5: What is the post-weld process of Industrial Laser Welding Machine?
A5: After welding with Industrial Laser Welding Machine, the workpiece
needs to be maintained. If necessary, welding flaws such as pores,
cracks and meaningless welding points can be eliminated by
grinding, polishing and other processes.
