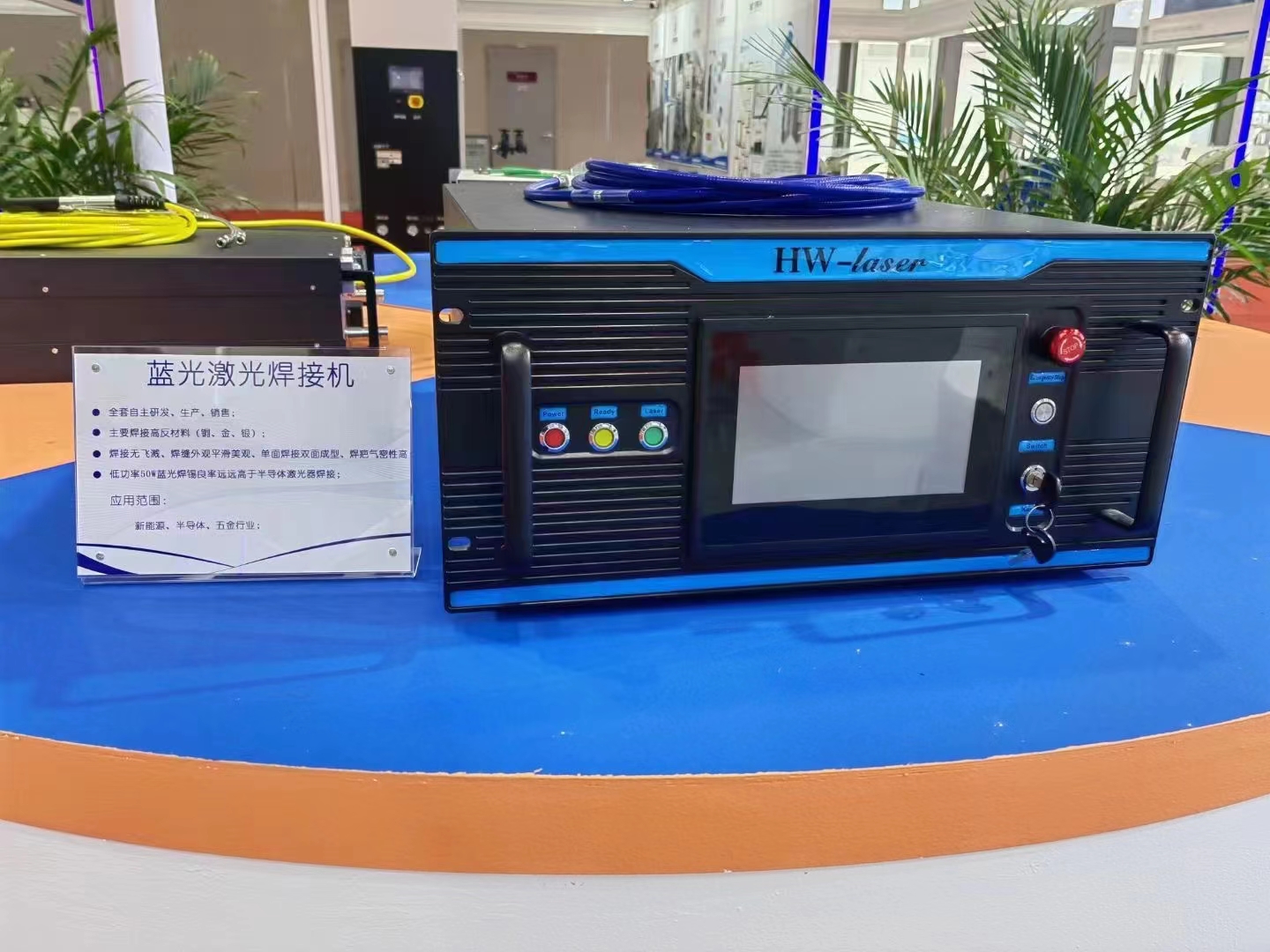

Blue laser source and Fiber laser source Hybrid Laser beam
recombination welding machine
Description
Blue laser (450nm) and fiber laser (1064nm) Hybrid-laser wobble
welding can achieve blue laser source and fiber laser source
coaxial recombination. It is used in thick and highly reflective
metal welding (gold, silver, copper, aluminum). By wobble method
make itself used more widely and technical parameter. The
reflective materials have more highly absorptivity for blue-fiber
hybrid laser make less spark in welding process and achieve quality
welding and nice welding surface.
Widely used in new energy industry, semiconductor industry.
HANWEI laser has started to research and develop Blue-laser almost
at the same time with laser welding enterprise in Europe, America
and Japan.
Use independent R&D blue laser system to create new laser
welding fields (Blue laser source, Blue- laser control system, Many
kinds of multiple special purpose of blue welding head).
Mainly used for copper welding, silver welding, gold welding and
other High reflectivity materials welding. The Blue laser with
incomparable super high absorptivity (The high reflectivity
materials in Blue-laser wave range with more than 60%
absorptivity).
Widely used in new energy industry, semiconductor industry.
Advantage
Independent R&D all software and hardware
More than 70% high absorptivity. Reduce much more equipment power
than red guide beam laser to reduce cost.Suitable for thick and
highly reflective material welding.
During welding with low spark, high and stable welding quality.
Achieve deep penetration and smooth welding surface.
Specification
| Model | HW-FH-1700W | HW-FH-2200W | HW-FH-3200W |
| Laser Power | Blue laser 200 W Fiber laser 1500W | Blue laser 200 W Fiber laser 2000W | Blue laser 200 W Fiber laser 3000W |
| Wave length | 445nm + 1064nm | 445nm + 1064nm | 445nm + 1064nm |
| Power stability | ± 0.5 % | ± 0.5 % | ± 0.5 % |
| Cooling method | Water | Water | Water |
| Equipment power | 6500 W | 7500 W | 11000 W |
| Pulse width | 0.5 - CW | 0.5 - CW | 0.5 - CW |
| Remark | Blue laser power optional |
| Hybrid Laser Welding Head Model | HW-LFH-70100200-Y-D80 | HW-LFH-70100200-Y-QBH |
| Laser Power | Blue laser 200 W Fiber laser 2000W | Blue laser 1000 W Fiber laser 2000W |
| Collimating length | Blue 70 – Fiber 100 | Blue 70 – Fiber 100 |
| Focus length | 200 | 200 |
| Interface type | D80 - QBH | QBH - QBH |
| Accessible wave range | 450nm + 1064nm | 450nm + 1064nm |
| Head Type | Y | Y |
| Net weight | 2.5 kg | 2.5 kg |
| Usable laser source | Blue and Fiber laser source | Blue and Fiber laser source |
| Dual Motor Welding Head Model | HW-36-70-100200-Y-QBH |
| Laser Power | Blue laser 1000 W Fiber laser 3000 W |
| Collimating length | Blue 70 – Fiber 100 |
| Focus length | 150 / 200 |
| Interface type | QBH - QBH |
| Accessible wave range | 450nm + 1064nm |
| Laser beam size adjustable | 0.5 – 5mm |
| Laser beam type | ―,○,◎,⊙,△,8 |
| Head Type | Y |
| Net weight | 2.5 kg |
| Usable laser source | Blue and Fiber laser source |
