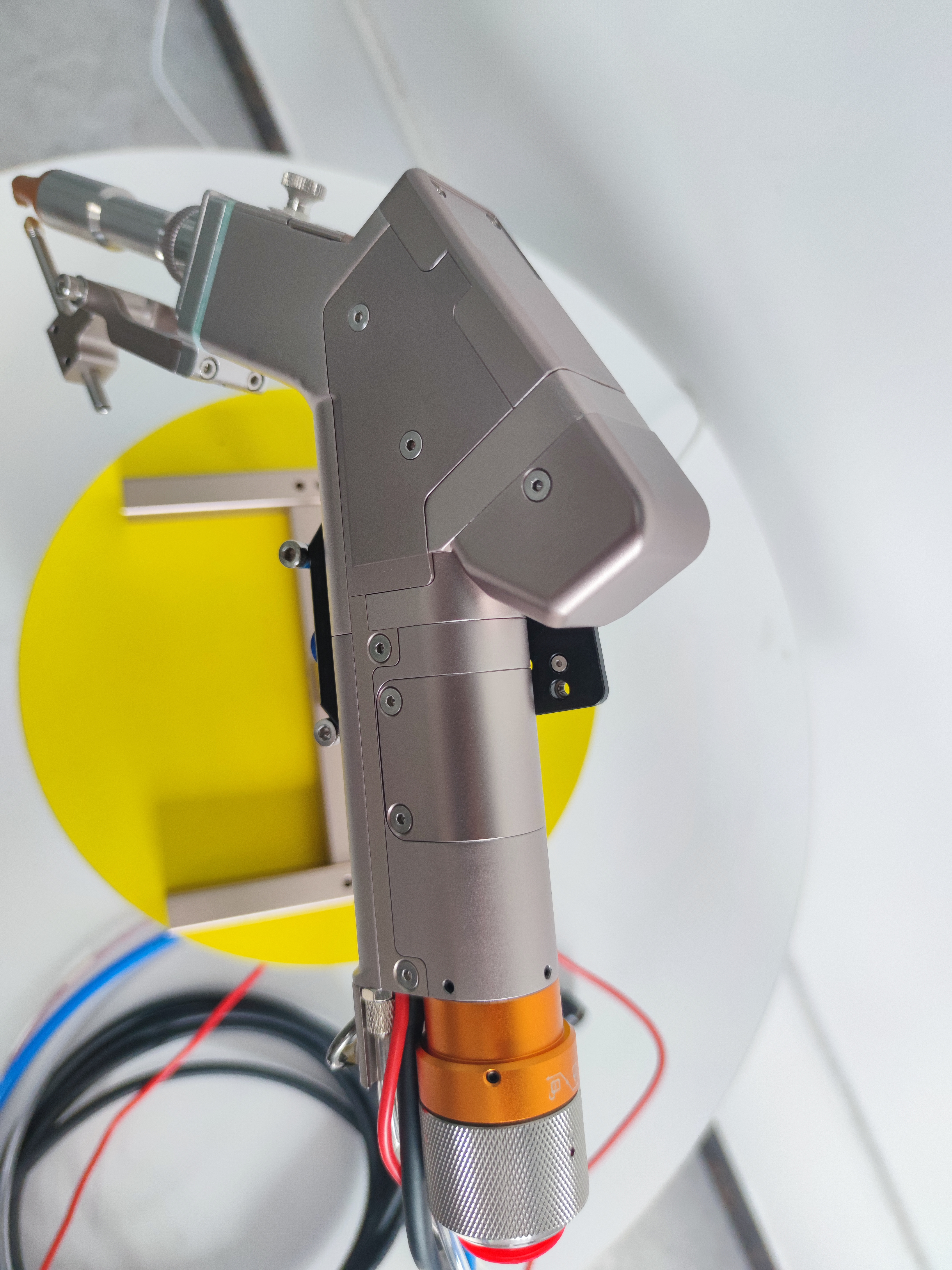

    Portable Fiber Laser Welding Head Water Cooling Single Motor

    Ask Lasest Price
    Brand Name : HanWei
    Model Number : HW-20-60150
    Certification : CE, FDA
    Payment Terms : T/T
    Delivery Time : 5 work days
    Price : Negotiation
    Supply Ability : 6000 Set per year
    • Product Details
    • Company Profile

    Portable Fiber Laser Welding Head Water Cooling Single Motor

    Fiber Laser Welding Head for Industrial Applications Handheld Laser Welding Type

    Fiber Laser Welding Head Single motor Wobble Handheld Laser Head Description:

    The company HanWei Laser Equipment Co.,Ltd is one of the only a few supplier around the world, who can research and develop,manufacturing the whole set of handheld laser welding machine : Handheld welding head → Laser control system → Wobble control system → Wire Feeding device→ Laser Source.

    The Handheld Laser Welding Head with its user-friendly small size, light in weight, large welding bead advantages is very popular in the laser welding industry.
    HanWei Laser Independent develop the full set handheld laser welding head and control system put on the market. The Laser Head and control system adopt the safety lock: Output the laser only when the nozzle touch the workpiece to prevent harming others.


    The handheld laser welding head adopt drawer type of protection lens setting for convenience of users themselves for a replacement.


    The Handheld Laser Welding Head single motor wobble type with laser welding range adjustment, light weight, more depth of fusion advantages to adapt to use in different scenes.

    Fiber Laser Welding Head Specification:
    ModelHW-20-60150
    Usable Laser Power1500W-3000W
    Welding Thickness10mm Steel
    Welding MaterialsStainlessSteel, Aluminum
    Interface typeQBH
    Accessible wave range1064nm

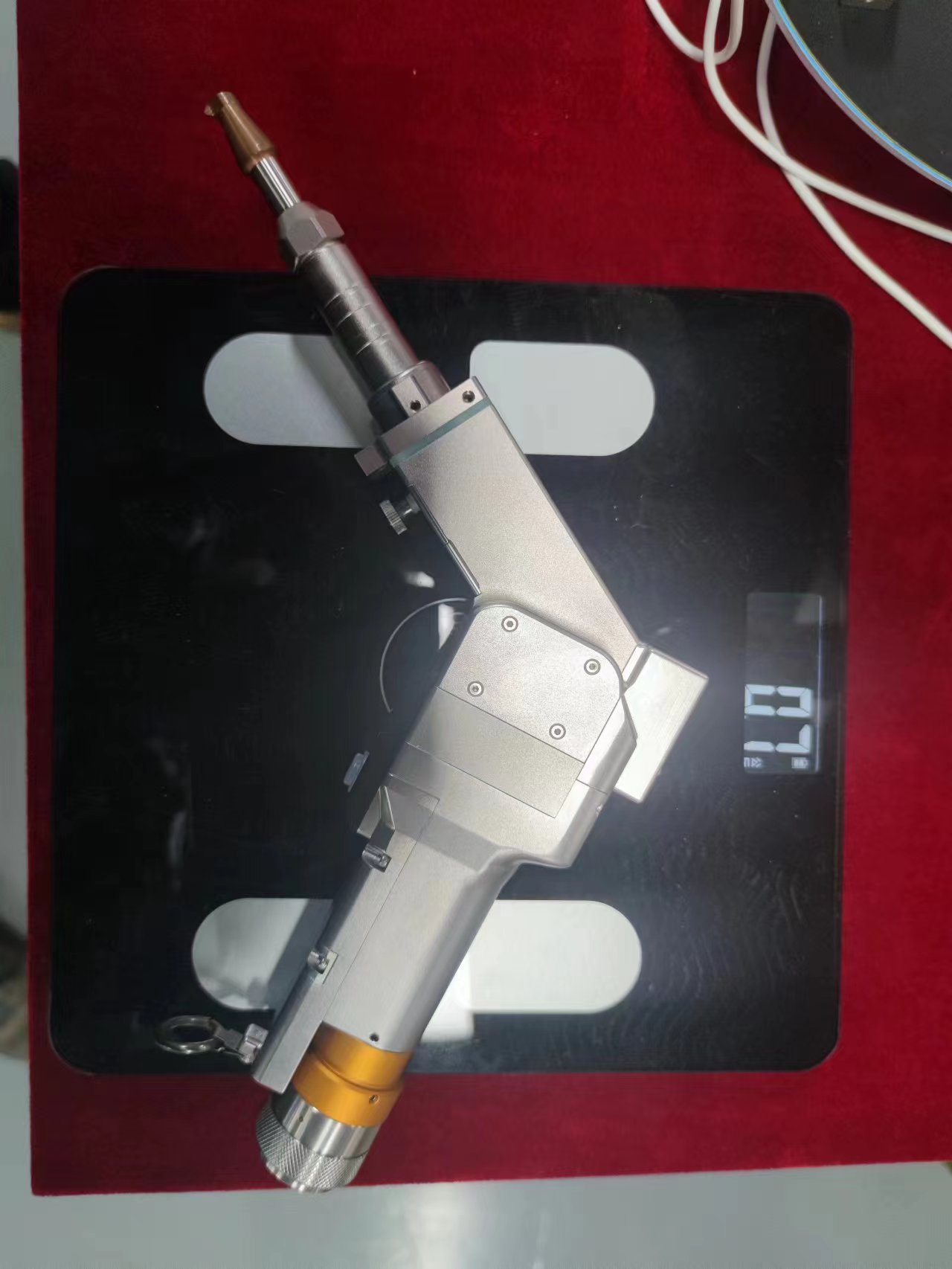

    Laser Head weight0.7 kg
    Laser head size216*287 mm
    Robot and Automatic Welding SolutionSupport
    Laser head packing size39*22*29cm.
    Laser head packing gross weight9kg
    Standard single route wire feeding device packing Info17Kg. 70*40*65cm.
    Double route wire feeding device packing Info30Kg. 79*45*70cm.
    Usable laser sourceMost of laser source

    Fiber Laser Welding Head Features and Advantages:
    *Extremely Light in weight.
    *User-friendly holding design.
    *Simple control system.
    *Safety switch function.
    *Simple structure is easy to maintenance.
    *Adjustable Laser beam range: 0.5 - 5 mm.
    *Steel wire, Aluminum wire feeding support.
    *Laser beam scan mode: Line “-”.
    *Supply Four welding modes (CW – Continue, Adjust laser out frequency, Argon weld type, QCW mode peak power output).
    *Signal cable customized. 50m length possible.
    *Support customized languages in control system.
    *All performance features can be customized to meet individual customer requirements.

    Fiber Laser Welding Head Product Show:






    Paper Box Packing

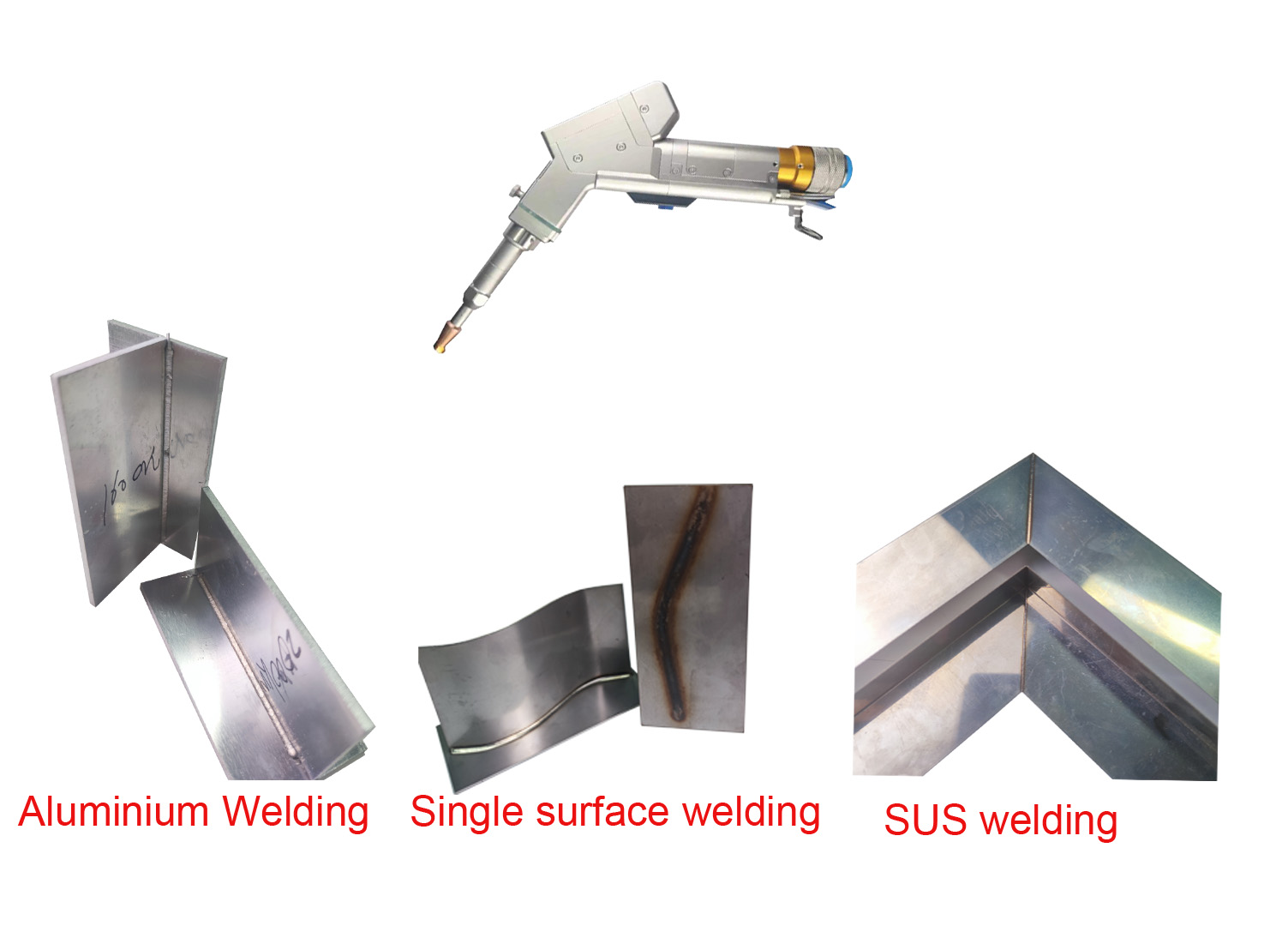

    Welding Sample Show


    Internal Structure of Welding head. Internal structure of welding head with extremely simple design, easy to operate and maintenance.


    Welding Head Size


    Nozzle


    Lens and Mirrors : Protective lens, Focus lens, Motor lens, Collimating lens.
