    Industrial Fiber Laser Welding Head , Handheld Type Wobble Laser Welder

    Ask Lasest Price
    Brand Name : HanWei
    Model Number : HW-20-60120
    Certification : CE, FDA
    Price : Negotiation
    Payment Terms : T/T
    Supply Ability : 6000 Set per year
    Delivery Time : 5 work days
    • Product Details
    • Company Profile

    Industrial Fiber Laser Welding Head , Handheld Type Wobble Laser Welder

    Fiber Laser Welding Head for Industrial Use Handheld Laser Welding Wobble Laser

    Fiber Laser Welding Head Wobble Handheld Head Description:

    The Wobble Handheld Laser welding is a new welding type, and it is one of important aspects in material processing technology application. Laser welding mainly aim at thin material, precision accessories welding, the welding process belong to heat conduction, even laser irradiate and heat the work piece’s surface to melting of work piece, form a specific weld pool. Could achieve spot welding, butt welding, stitch welding, seal welding. With small welding seam, small heat-affected zone, little deformation, fast welding speed, welding seam smooth, good-looking, without processing after welding or with a simple processing only. The welding seam with good quality, have no pore, may control accuracy, focusing beam is small, high precision position, easy to achieve automatic. Semiconductor welding machine, fiber laser welding machine, high power YAG welding machine has opened up new laser welding frontiers. Diathermancy study on keyhole effects in laser deep penetration welding more and more applied widely in machinery, automobile, iron and steel industry. This handheld welding machine is applied to sheet metal welding, please careful reading following method of application.


    Comparison between laser welding and traditional welding

    NO

    Parts Name

    AdvantagesDefectFiber laser welding compare
    1

    CO2 Welding

    Low Price

    Use High costUse low cost
    2

    CO2 Welding

    Welding thick materialWelding surface is roughness, with lots of following processing. Not suitable for welding thin materialWelding surface is smooth, with few following processing. Suitable for welding thin material
    3

    CO2 Welding

    Use wire as consumable parts

    Wire as option.

    4

    CO2 Welding

    Use CO2 protection gas

    Use argon or nitrogen as protection gas
    5

    Argon welding

    Low price, Use middle cost

    Welding speed is slow.

    Use low cost, Welding speed is fast 2-3 times than argon.
    6

    CO2 & Argon

    Difficult operation

    Easy operation

    7

    CO2 & Argon

    Low safety

    High safety

    8

    CO2 & Argon

    High technical requirements to the operator. With high costs.

    Technical requirements to the operator are not too much. With low costs.


    Fiber Laser Welding Head Features and Advantages:

    ●Perfect substitute argon welding and electric welding in thin metal material welding area. Like stainless steel, carbon steel, aluminum and etc.

    ●Light weight, Small size, Ergonomic design for handling comfort.

    ●Safety lock touch for output laser.

    ●Easy operation, low requirements for operator.

    ●Anti-jamming strong.

    ●The entire seal structure. Internal water and gas route.

    ●Adopt independent research and development control system.

    ●Strong anti-jamming, configuration 500W-2000W laser source.

    ●Nice welding seam, high speed, no welding trace, no color change, no need later polishing.


    Fiber Laser Welding Head Specification:
     Model
     HW-20-60120
    Usable Power500W-2000W
    Focal length150/200
    Collimate focus60/80
    Interface typeQBH
    Accessible wave range1064
    Net weight0.8kg
    Light source diameter1.0,2.0,3.0(Optional)
    Usable laser sourceMost of laser source on market

    Fiber Laser Welding Head Product Show:

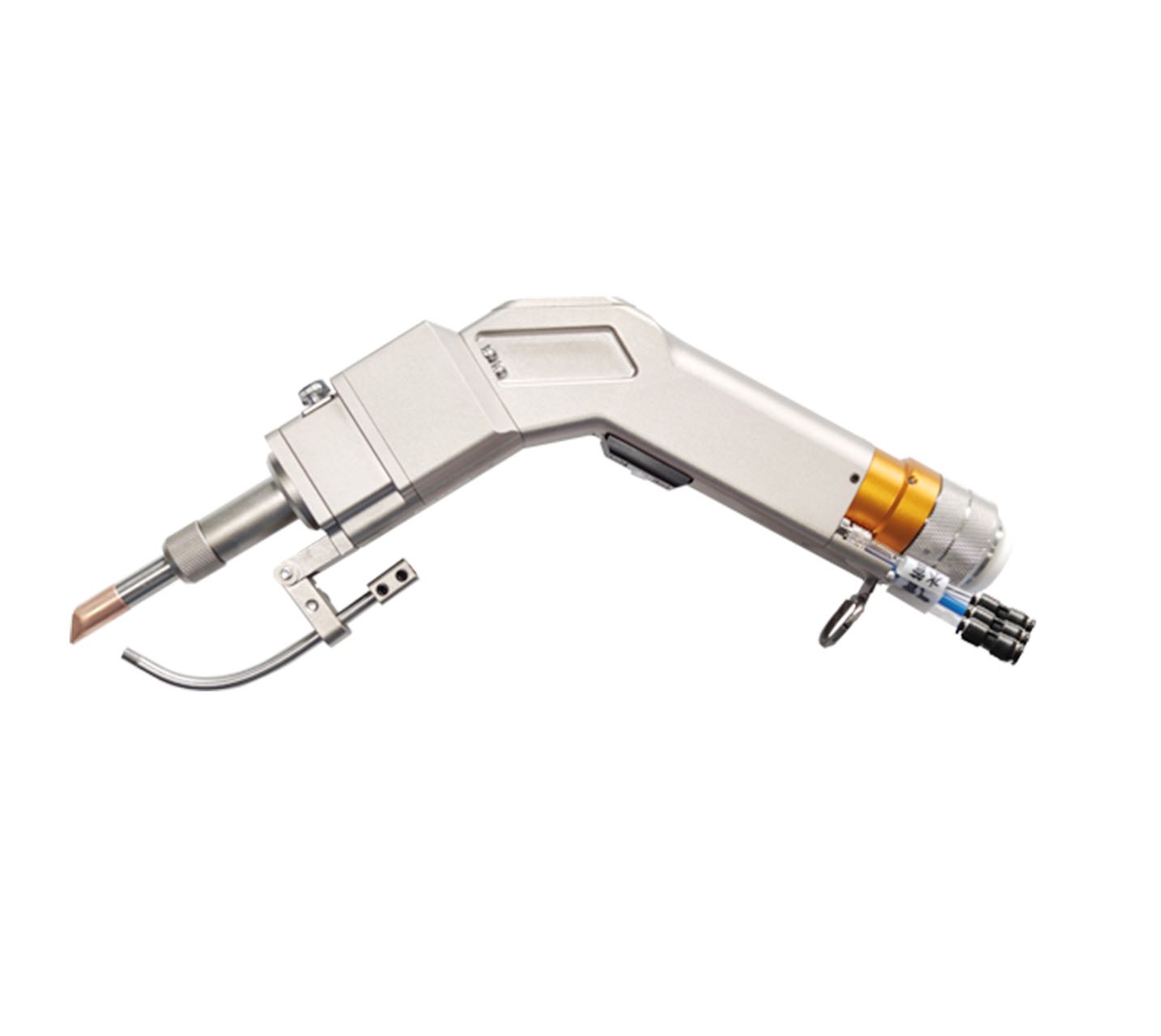

    Standard Type and Straight Type



    Touch Screen Control System





    Internal Structure of Welding head. Internal structure of welding head with extremely simple design, easy to operate and maintenance.

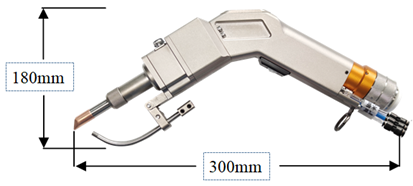

    Welding Head Size
