Metal Welding Fiber Laser Wobble Head For 1000w 2000w 3000w 4000w 6000w Laser

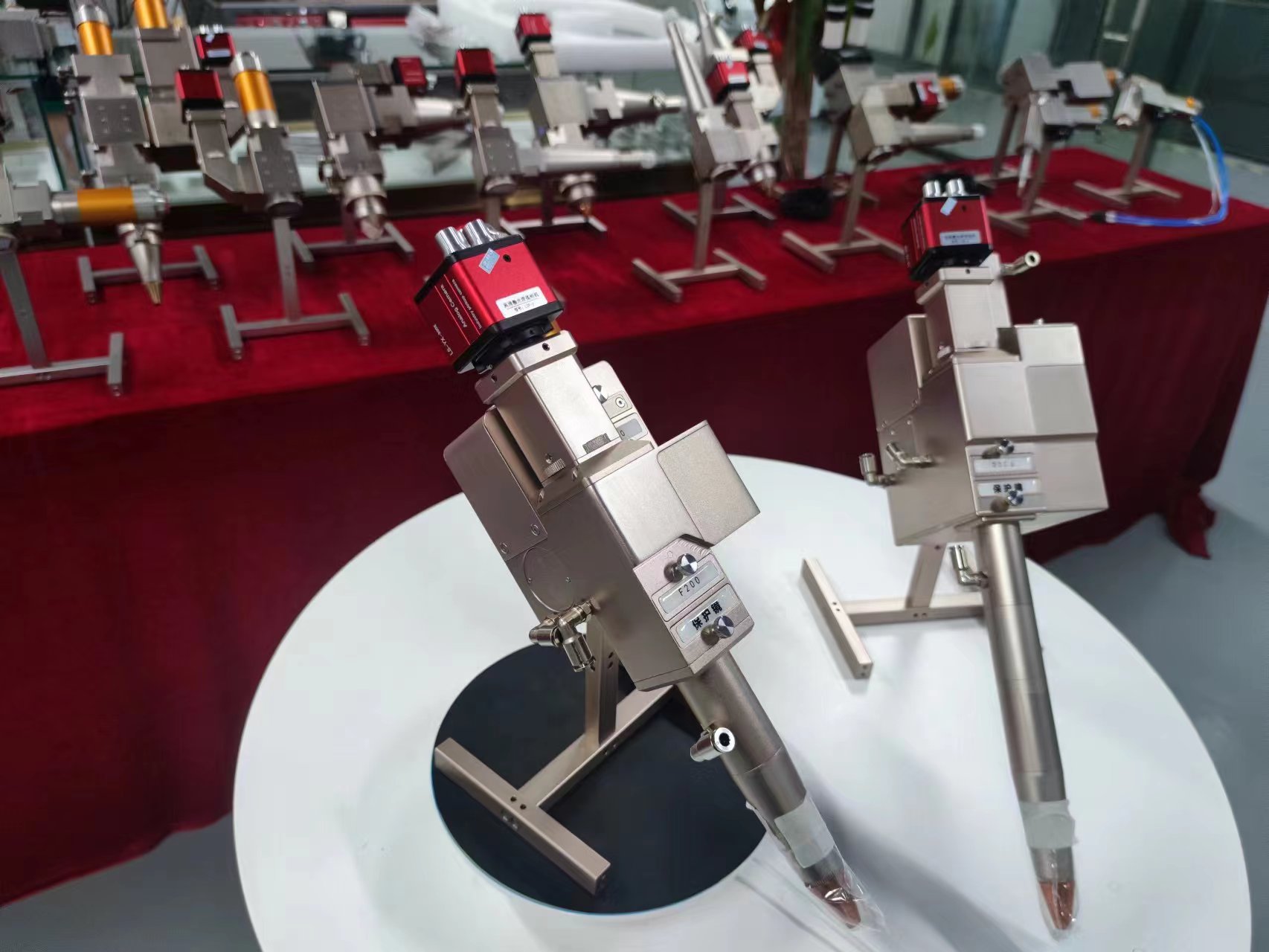

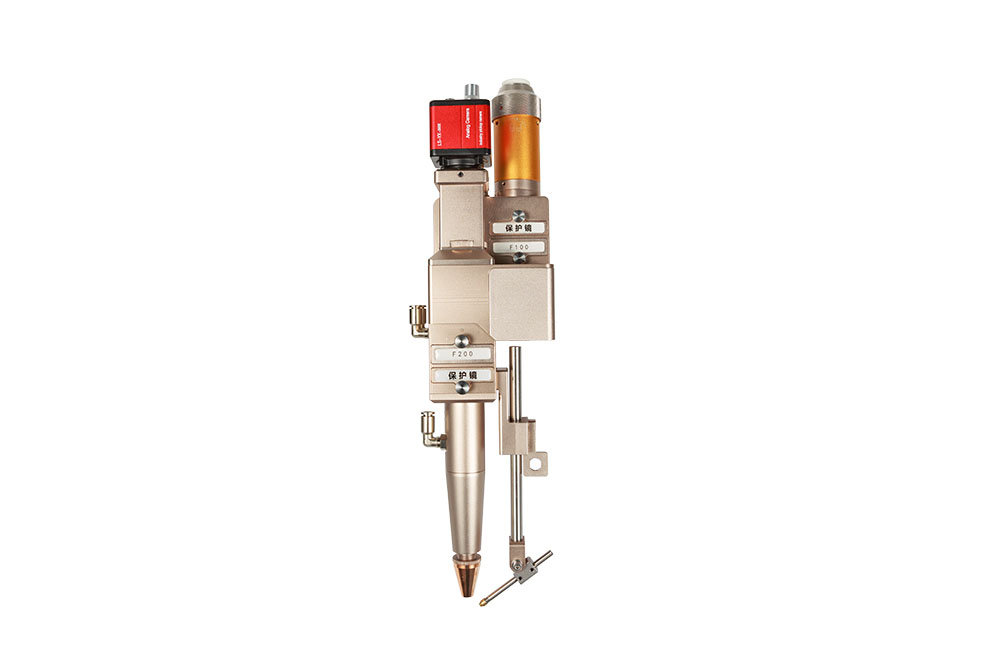

Fiber Laser Welding Head Description

The Fiber Laser Welding Head HW-PT-36 Serial is a very advanced product. It has many prictical functions and support high laser power long time continue working. And there are 4 Laser output type: CW, QCW, Argon, Adjust. May cause applicable to different scenarios.The structure of welding head is easy to replace lens and mirror inside of laser welding head.

The fiber laser welding head is a key component of a fiber laser welding machine, which is a piece of equipment used to join materials, usually metals, together by using a highly focused laser beam to melt the workpieces and cause them to flow together.

Here is a detailed description of the various parts and features of a fiber laser welding head :

1. Laser Focusing System
The laser focusing system consists of a laser beam collimating unit and a focusing unit. The laser beam collimating unit enlarges the laser beam to ensure a more precise focus, while the focusing lens focuses the enlarged beam onto a small spot on the workpiece. Both components are critical for achieving high energy density, which is necessary for effective welding.

2. Protective Window
The protective window, also known as a cover slip or protection glass, shields the internal components of the welding head from debris and spatter produced during the welding process. It also prevents damage to the focusing lens from the high energy of the laser beam.

HanWei Laser Lens and Mirrors inside of welding head made by high quality quartz consits which through strict production processes.

3. Gas Nozzle
The gas nozzle directs a stream of shielding gas onto the weld area. The shielding gas, usually argon or nitrogen, protects the weld pool from contamination by atmospheric gases such as oxygen and nitrogen.

This gas also protect welding head from dust pollution.

Applicative advantage

1.Independent research and development, produce and sale.

2.Small size, Light weight.

3.Laser beam adjustable range 0.5-5mm.

4.Six type of Laser beam form: ―,○,◎,⊙,△,8

5.Four types of laser’s beam Out Mode

6.Laser power out with slow up and slow down function to control.

Specification

HanWei Laser offers a range of laser systems, including desktop and handheld laser system models, that use advanced fiber, pulsed or continuous wave, blue laser, diode laser, hybrid laser technology to meet the exact needs of their customers. Also provide custom solutions for specialized applications and offer training and support to help their customers get the most out of their laser systems.

Hanwei Laser has a global presence with offices and distributors in Europe, North America, Asia, and Middle East, making it accessible to customers all over the world.

Shenzhen Hanwei laser equipment Co.,Ltd specializes in laser welding industrial, the company is wholeheartedly dedicated to providing worldwide first-class laser welding technology for all laser integrated businesses in the world.

Main products include :

AMB laser source, Fiber laser source,Diode laser source, YAG laser source, QCW laser source and other type laser sources for laser welding : laser control system : laser optical system : and related products of laser welding.

The company uphold a business philosophy “ Research and Development as the core, Technology as guarantee, Customer focused, Backed by service”, Take “ Reliable quality, Continual improvement , Continuous innovation, Considerate service” as Service tenet.

Hanwei has always been specializes in high precision laser welding, equipment manufacturer of smart device. From the components purchase, R&D manufacture, assembly and test, sales and service, With the world’s most advance’s high precision laser welding solution and machine automation solutions.

Hanwei Laser is one of the most important Hi-tech enterprises of the technological frontier in high precision laser welding in China.

The company brings together local and foreign experts and academic top talents, Has a number of technical talent, who has been long engaged in laser welding field and intelligent equipment’s design and development. Especially in laser source system, laser source power supply, laser source controller, laser optical system design, Digital motion’s control software field with rich experience in theory and practice.

HanWei products are widely used in various industry : Batteries manufacturing, automobile and auto parts manufacturing, electronic circuits and fiber optic communication device manufacturing, mobile phone, household appliances, Kitchen and bathroom hardware, precision instruments, instrumentation, jewel, medical devices, solar energy, optical industry, motor industry and others. The products has achieved high commendations and acknowledgments from users in various industry, have a good reputation and credibility.

HanWei Laser successfully developed a full range of laser welding products with international advanced level. Such as “Dual wavelength compound laser welding” solve the power battery’s aluminum alloy welding speed and penetration of trachoma’s compatibility, “Single lamp & single bar 600W laser source ” solve the low rate of good quality problem of power battery’s seal nails welding. And “MJ level super energy feed-back YAG welding machine” is specifically for below than 0.15mm thickness thin metal’s Ultra-high precision welding.
